Intel EMIB Packaging: A Key Alternative in the AI Chip Era
Advanced semiconductor packaging has evolved from a backend manufacturing step into a central element of modern chip architecture. As AI accelerators demand extreme memory bandwidth and chiplet integration, packaging technologies now play a critical role in overall system performance.
One of the most prominent innovations in this space is Intel’s Embedded Multi-die Interconnect Bridge (EMIB). Designed to efficiently connect multiple chiplets within a single package, EMIB is increasingly viewed as a competitive alternative to the dominant CoWoS technology used in many high-performance AI chips.
📈 Market Dynamics: Beyond the CoWoS Capacity Bottleneck #
For years, advanced AI processors have relied heavily on large silicon interposer packaging technologies. However, the rapid expansion of AI infrastructure has placed significant pressure on packaging capacity.
Demand for advanced packaging—particularly for HBM-equipped AI accelerators—has grown faster than global manufacturing capacity. This has created supply constraints across the semiconductor industry.
Intel aims to capitalize on this opportunity by expanding its advanced packaging business using technologies such as EMIB and its enhanced variants.
Key Drivers Behind Industry Interest #
Capacity Flexibility
Traditional interposer-based packaging requires large silicon wafers and complex TSV processing, which can limit production scalability. EMIB’s modular design allows more flexible manufacturing and scheduling.
Regional Supply Chain Advantages
Intel operates advanced packaging facilities within the United States, enabling chips produced in domestic fabrication plants to be packaged locally. This regional integration helps simplify logistics and reduce supply chain complexity.
Chiplet Architecture Growth
As chiplet-based designs become mainstream for AI and high-performance computing, flexible interconnect technologies like EMIB become increasingly attractive.

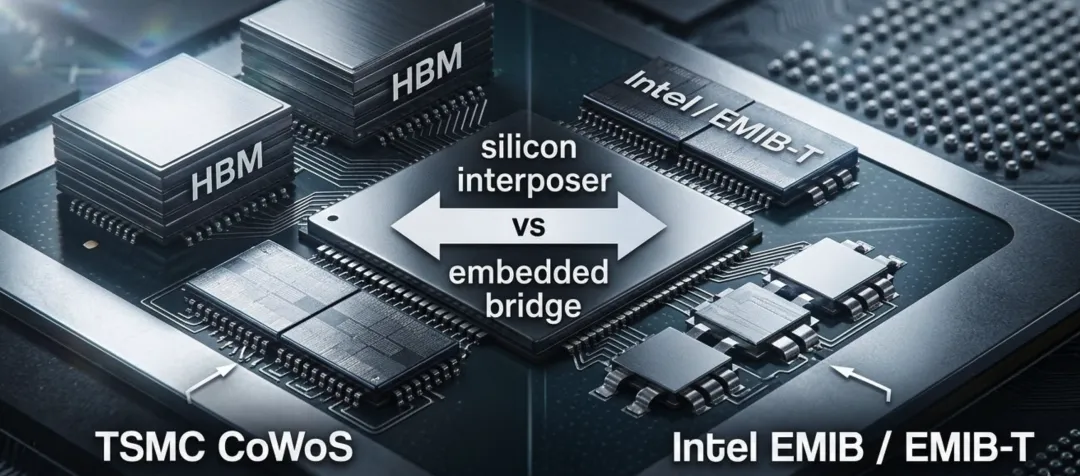

⚙️ EMIB vs. CoWoS: Architectural Differences #
Both EMIB and CoWoS enable high-bandwidth communication between chiplets and memory stacks such as HBM. However, they differ significantly in their implementation.
| Feature | CoWoS | EMIB |
|---|---|---|
| Interconnect Structure | Large silicon interposer | Small embedded silicon bridges |
| Manufacturing Approach | Full interposer under entire package | Bridges embedded only where needed |
| Cost Structure | Higher due to large silicon area | Lower due to localized silicon use |
| Yield Risk | Higher with larger interposers | Reduced due to smaller bridge elements |
| Strength | Maximum bandwidth density | Flexibility and cost efficiency |
The key architectural difference is that CoWoS uses a full silicon interposer, while EMIB inserts small silicon bridges inside the package substrate to connect only the dies that require high-speed communication.
🔧 How EMIB Works #
Instead of placing a large silicon interposer beneath the entire chip package, EMIB embeds tiny silicon bridge structures directly inside the organic package substrate.
These bridges contain high-density interconnect wiring that links neighboring chiplets together with extremely short signal paths.
Typical configurations include connections between:
- Compute dies (CPU, GPU, or AI accelerators)
- High Bandwidth Memory (HBM) stacks
- Specialized accelerator chiplets
- IO or networking dies
Because bridges are only placed where high-speed communication is required, the design becomes both more efficient and more scalable.
Key Advantages #
Reduced Package Footprint
By eliminating a full interposer layer, EMIB reduces the overall package size and silicon area required.
Improved Material Efficiency
The technology avoids large-scale TSV arrays across the entire base layer, simplifying manufacturing.
Better Design Modularity
Chip designers can combine multiple dies using bridge placement tailored to each design’s communication requirements.
🔬 The Next Step: Glass Substrates and Future Scaling #
Looking further into the future, Intel is developing glass substrate technology to support next-generation packaging architectures.
Glass substrates aim to replace traditional organic materials used in package bases. These new materials offer significantly improved mechanical and thermal properties.
Why Glass Substrates Matter #
Thermal Stability
Glass has a coefficient of thermal expansion (CTE) closer to silicon, which reduces mechanical stress during temperature changes.
Reduced Warpage
Organic substrates can warp under the thermal loads generated by modern AI processors. Glass significantly reduces this deformation, improving reliability.
Higher Interconnect Density
Glass substrates support much finer wiring geometries and smaller bump pitches, enabling much denser chiplet integration.
Larger Package Sizes
The improved stability of glass substrates allows much larger multi-chip modules, enabling the construction of extremely large AI processor packages.
These characteristics make glass substrates a promising platform for future trillion-transistor systems.
🌐 Ecosystem and Industry Adoption #
The broader semiconductor ecosystem is gradually expanding to support new advanced packaging technologies.
Substrate manufacturers and OSAT providers are increasing investment in infrastructure capable of supporting complex chiplet-based architectures.
Several sectors are particularly interested in these packaging approaches:
AI Accelerators
Large-scale AI processors require extremely high memory bandwidth and often rely on multiple HBM stacks.
High-Performance Computing
Supercomputing and data center workloads benefit from multi-chip modules that integrate CPUs, GPUs, and accelerator chiplets within a single package.
Mobile and Custom Silicon
Designs that prioritize efficiency and modularity can benefit from bridge-based packaging architectures.
As chiplet-based system design becomes the industry norm, technologies like EMIB are expected to play a growing role in heterogeneous integration.
📊 The Future of Advanced Packaging #
The semiconductor industry is moving toward a multi-technology packaging ecosystem. No single approach will dominate every workload.
Large interposer technologies remain extremely valuable for ultra-high bandwidth GPUs, while bridge-based solutions provide flexibility and cost advantages for many other applications.
Technologies such as EMIB, combined with emerging materials like glass substrates, represent an important step toward the next generation of large-scale integrated systems—potentially enabling packages containing hundreds of chiplets and trillions of transistors.
