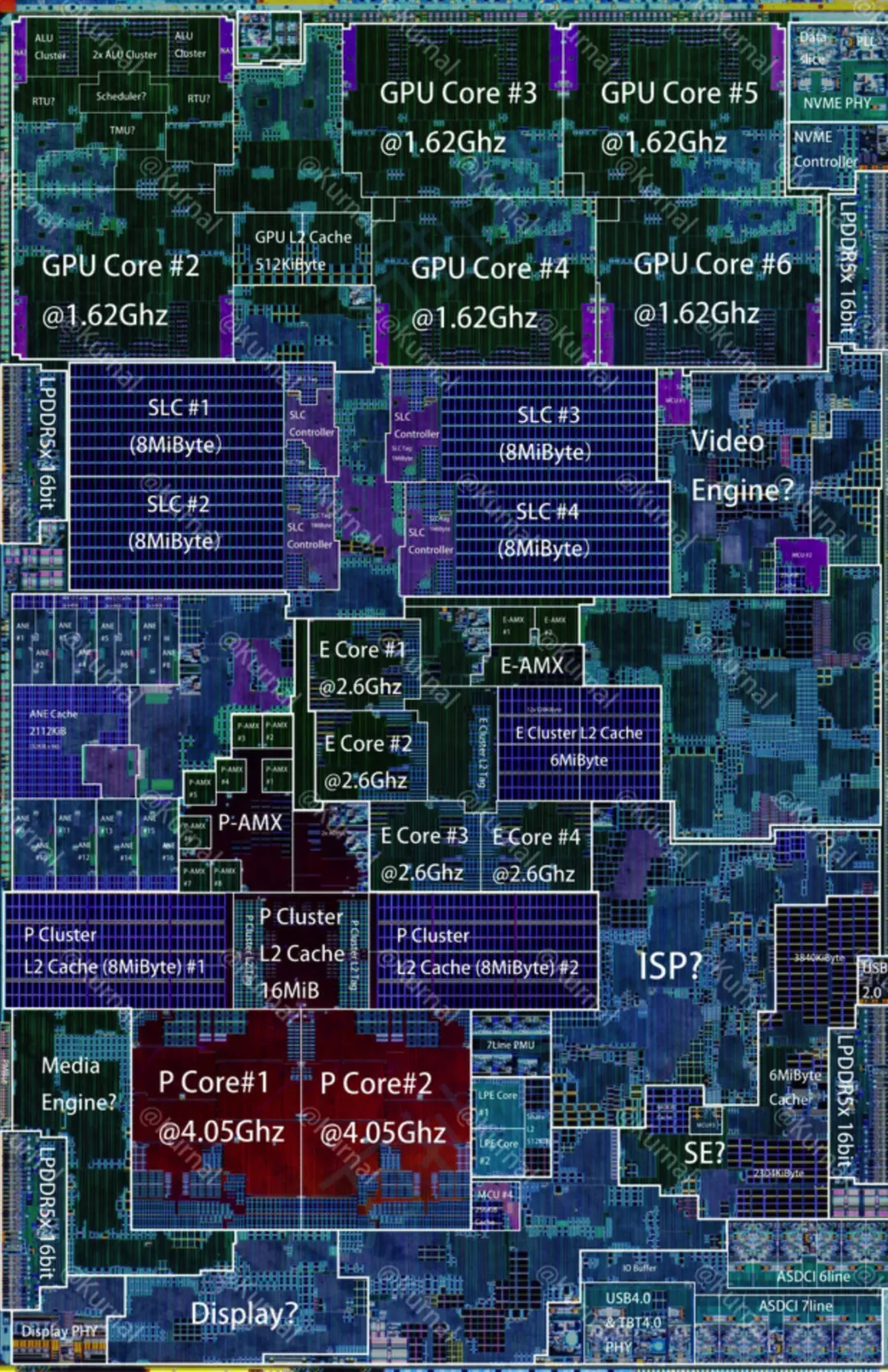

Apple introduced the A19 and A19 Pro SoCs alongside the iPhone 17 lineup and the ultra-thin iPhone Air. At first glance, the A19 generation appeared to be a routine annual upgrade. However, leaked die photos of the A19 Pro in mid-November revealed that the most significant changes were not purely architectural, but instead centered on process node selection and aggressive physical layout optimization.
Detailed analysis now shows that Apple achieved an unusually large die-area reduction—well beyond what the process transition alone would normally deliver.
⚙️ Process Migration and Area Reduction #
The A19 series marks a full transition away from TSMC’s N3E process, used by the A18 generation, to the newer N3P node.
- N3E vs. N3P: While both belong to TSMC’s 3nm family, N3E emphasizes yield maturity and cost control, whereas N3P is tuned for higher density and performance.
- Theoretical Gain: A straightforward N3E → N3P migration was expected to reduce die area by roughly 4%.
- Measured Result:
- A19 Pro die area: ~98.6 mm²
- A18 Pro die area: ~105 mm²
- Net reduction: ~10%
- The non-Pro A19 shows a similar ~9% shrink compared with the A18.
This gap between expected and actual results strongly indicates that Apple went beyond a simple node migration and undertook a systematic internal re-layout of the SoC.
🏗️ Core-Level Architectural Trade-Offs #
A closer breakdown of the die reveals that Apple did not uniformly compress every block. Instead, the company rebalanced silicon allocation across compute units:
- Performance Cores (P-cores):
- Area reduced by roughly 4%
- Suggests improvements in microarchitecture efficiency and physical layout, increasing performance per square millimeter.
- Efficiency Cores (E-cores) and GPU:
- Combined area increased by ~10%
- Indicates a strategic shift toward better parallel throughput and energy efficiency—consistent with early power-efficiency gains observed in real-world testing of the A19 generation.
Rather than chasing peak single-core density, Apple appears to have optimized for balanced performance, efficiency, and sustained workloads.
💾 Cache Density and Memory Layout Gains #
Cache restructuring is one of the clearest indicators of Apple’s layout engineering progress:
- Cache Macro Expansion:
- Cache macro size doubled to 32 KB
- Despite the increase, cache density improved by ~10%
- System Level Cache (SLC):
- A18: 4 MB SLC occupied ~1.08 mm²
- A19: same 4 MB SLC reduced to ~0.98 mm²
In practical terms, Apple managed to maintain or grow cache capacity while shrinking its physical footprint, a critical factor in keeping the overall die size under control.
Beyond compute and cache blocks, Apple also refined “non-core” logic areas—such as the ISP, display engine, media codecs, and security subsystems. These blocks are often resistant to scaling, yet Apple appears to have streamlined routing hierarchies, reused modules, and consolidated logic to preserve power and timing margins at higher transistor densities.
🔑 Conclusion #
The approximately 10% die shrink achieved by the A19 series is not the result of a single breakthrough. Instead, it reflects the combined impact of:
- Migration to TSMC N3P
- Targeted core-level architectural refinement
- Highly mature physical layout and cache-density optimization
Remarkably, Apple delivered an area reduction approaching what might be expected from an entire node jump—while simultaneously increasing transistor count, cache sophistication, and functional complexity. This outcome highlights the depth of Apple’s long-term silicon engineering expertise, where process technology is leveraged, but not relied upon alone, to drive generational gains.
