Broadcom Ignites the 2nm AI Chip Race
On February 27, 2026, Broadcom delivered what it describes as the world’s first 2nm Custom Computing SoC built with 3.5D XDSiP packaging to Fujitsu. The announcement marks more than a process-node milestone—it signals a strategic pivot in semiconductor design from pure transistor scaling toward aggressive vertical integration.
The AI chip race is no longer just about smaller nanometers. It is about stacking, bonding, and packaging innovation.
🚀 The 2nm + 3.5D Inflection Point #
This milestone combines advanced process technology with structural packaging breakthroughs.
Process Node: TSMC 2nm #
The chip is manufactured using TSMC’s 2nm process, delivering:
- Higher transistor density
- Improved energy efficiency
- Greater compute throughput per watt
At this scale, incremental efficiency gains translate directly into megawatt-level savings inside AI data centers.
3.5D XDSiP Packaging #
Traditional scaling models included:
- 2.5D – Side-by-side chiplets on an interposer
- 3D – Vertical die stacking

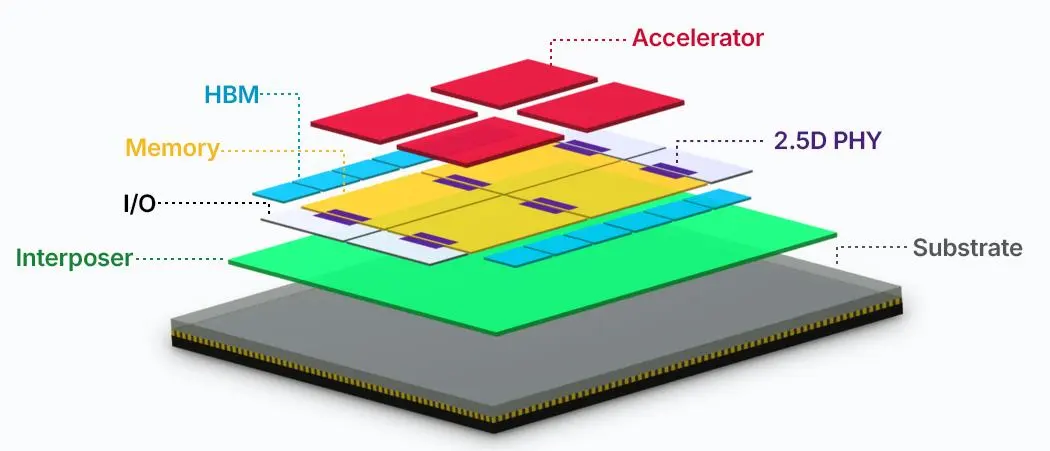

Broadcom’s 3.5D XDSiP (Extreme Dimension System in Package) pushes further by combining:
- Face-to-Face (F2F) die stacking
- Hybrid copper bonding
- Heterogeneous node integration
The compute die (2nm) is paired with a 5nm SRAM die, enabling optimized cost-performance trade-offs.
Performance Expansion #
Reported structural improvements include:
- Single-package silicon area expanded from ~2500 mm² to over 6000 mm²
- HBM stacks increased from 8-layer to 12-layer configurations
- Shorter signal paths and lower interconnect latency
- Improved power efficiency through reduced trace length
Why 3.5D Matters More Than 2nm #
Transistor scaling is approaching physical limits. Performance growth now depends on:
- Vertical stacking
- Advanced memory integration
- Power delivery optimization
In this new paradigm, packaging innovation defines competitive advantage.
⚔️ Broadcom’s Bespoke Strategy vs. Nvidia’s Platform Model #
The AI compute market is splitting into two strategic camps:
- General-purpose GPU platforms
- Custom AI ASIC solutions
Nvidia’s Approach #
Nvidia dominates with:
- Flexible GPU architectures
- A mature CUDA software ecosystem
- Integrated networking (NVLink, InfiniBand)
Its strength lies in versatility and developer lock-in.
Broadcom’s Strategy: Custom XPU Architect #
Broadcom positions itself as the leading architect for custom AI ASICs (XPUs) tailored to hyperscalers.
The argument is simple:
- GPUs are powerful but generalized
- Hyperscalers often pay for unused hardware features
- Custom silicon eliminates redundancy and improves efficiency
Expanding Custom Silicon Footprint #
Broadcom has reportedly secured major partnerships:
- OpenAI – First- and second-generation AI ASIC programs
- Google – TPU deployments projected in the multi-million range by 2027
- Meta – Expected to deepen custom silicon collaboration
This model allows hyperscalers to bypass GPU margins and optimize for specific workloads.
🏭 Industry Chain Reactions #
The move to 2nm and 3.5D packaging is reshaping the supply chain.
Capacity Constraints #
TSMC’s 2nm production capacity is heavily allocated, with major players including:
- Apple
- Qualcomm
- Broadcom
- Nvidia
- AMD
Smaller firms face barriers due to long-term wafer reservations.
Packaging Becomes the Battleground #
Competitive differentiation is increasingly defined by packaging capabilities:
- Intel 18A with advanced stacking
- Samsung SF2
- TSMC’s CoWoS ecosystem
Node leadership alone is no longer sufficient. Integration expertise determines system-level efficiency.
🔄 Can Broadcom Dethrone Nvidia? #
Short-term displacement is unlikely due to Nvidia’s software moat.
CUDA Advantage #
Nvidia’s CUDA ecosystem remains deeply entrenched in:
- AI research pipelines
- Model training frameworks
- Enterprise deployments
Hardware without software integration struggles to gain traction.
Broadcom’s Flanking Strategy #
Instead of direct confrontation, Broadcom is targeting:
AI Inference #
Custom ASICs often outperform GPUs in inference workloads due to:
- Lower power consumption
- Fixed-function acceleration
- Reduced silicon redundancy
As AI deployment scales, inference becomes the dominant power consumer.
Networking Infrastructure #
Broadcom’s Ethernet switch portfolio, including Tomahawk-class products, challenges Nvidia’s InfiniBand dominance.
If hyperscalers increasingly favor cost-efficient Ethernet fabrics:
- NVLink advantages narrow
- Nvidia’s vertical integration leverage weakens
🔮 The Vertical Future of AI Silicon #
The 2nm era represents a structural shift:
- From planar transistor scaling
- To vertical, heterogeneous integration
Future AI clusters will demand:
- Gigawatt-scale efficiency
- Massive HBM bandwidth
- Extreme packaging density
In this landscape, success depends less on who has the smallest transistors—and more on who masters 3D/3.5D system integration.
The AI silicon war is no longer just fought in nanometers.
It is fought in dimensions.
