High Bandwidth Memory (HBM) represents one of the most transformative advancements in modern memory architecture. With dramatically higher bandwidth, improved energy efficiency, increased capacity, and significantly faster transfer rates, HBM redefines what is possible in high-performance computing systems.
This guide dives deep into HBM’s development, capabilities, applications, and how it compares to traditional DRAM—making it an essential reference for engineers, enthusiasts, and system architects.
The global HBM market was valued at $2.8 billion in 2022 and is expected to expand from $3.53 billion in 2023 to $22.57 billion by 2032, achieving a Compound Annual Growth Rate (CAGR) of 26.10% from 2024 to 2032.
🔍 HBM Key Characteristics #
HBM has fundamentally reshaped how high-performance systems process data. A major differentiator from traditional memory is its exceptional bandwidth, achieved through vertically stacked DRAM dies connected with Through-Silicon Vias (TSVs). These direct, short-distance interconnects enable faster data flow and greater energy efficiency.
Stacking multiple DRAM chips into a single package reduces PCB footprint and boosts power efficiency. The extremely wide interface architecture enables high-speed communication critical for workloads in HPC, graphics, and machine learning.
Memory Bandwidth #
HBM offers vastly superior memory bandwidth thanks to its wide data bus and multiple independent channels. This architecture allows more data to move per cycle—ideal for high-speed rendering, scientific simulations, and parallel workloads.
Power Consumption #
Traditional DRAM requires more power to drive signals over longer distances. In contrast, HBM’s 3D-stacked structure shortens signal paths and operates at lower voltage, delivering significantly better energy efficiency—vital for datacenters and dense compute environments.
Memory Capacity #
HBM achieves high density by vertically stacking DRAM dies. This enables larger memory capacity within a compact footprint, making it ideal for devices that require substantial memory without sacrificing board space or thermal efficiency.
Transfer Rates #
HBM’s advanced packaging and wide interface architecture provide extremely fast transfer rates. This accelerates data-heavy operations such as video processing, real-time analytics, and neural network workloads.
🧩 HBM Technology Development #
The evolution of memory technology has always been a balance between performance, power, cost, and physical constraints. HBM marked a key breakthrough by addressing long-standing bottlenecks inherent in planar DRAM systems.
Traditional Memory Solutions #
DDR generations (DDR2 → DDR5) brought incremental improvements but struggled with routing congestion, signal integrity, and power consumption as bus widths increased. These challenges limited performance scaling in conventional architectures.
Introduction to HBM #
HBM introduced a stacked memory architecture, vertically connecting DRAM dies with TSVs. By placing memory close to the processor—typically through a silicon interposer—HBM drastically widens the data interface and increases bandwidth without expanding footprint.
HBM Advancements #

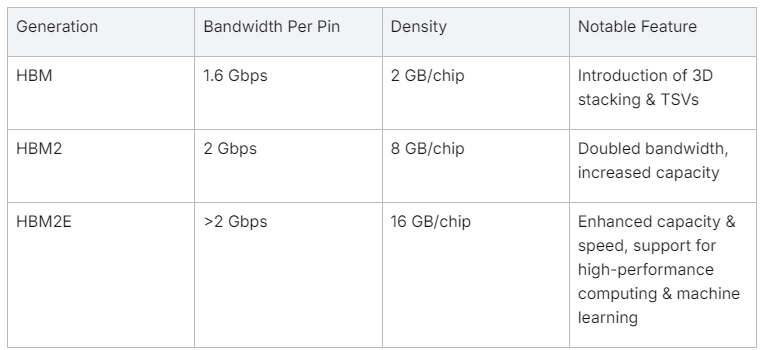

Each generation of HBM brought significant upgrades:
- HBM2 doubled bandwidth per pin
- HBM2E improved both speed and capacity
- HBM3 / HBM3E pushed bandwidth beyond 1 TB/s per stack
These improvements made HBM indispensable for next-gen AI accelerators, GPUs, and HPC systems.
🧠HBM Applications #
HBM is a cornerstone technology across industries requiring extreme performance, low latency, and high efficiency.
High-Performance Computing (HPC) #
HPC applications rely on HBM for:
- High parallel throughput
- Energy-efficient data access
- Dense memory capacity for large workloads
Graphics Applications #
HBM benefits GPUs by providing:
- Higher frame rates and smoother rendering
- Consistent performance at high resolutions
- Compact form factors for premium graphics cards
Artificial Intelligence (AI) and Machine Learning (ML) #
HBM accelerates AI by enabling:
- Rapid model training
- High parallel processing capability
- Efficient scaling for large models
Data Center Applications #
In data centers, HBM offers:
- High bandwidth for virtualization and multi-tenant workloads
- Lower power consumption across large clusters
- Reduced latency, improving end-user responsiveness
⚡ Advantages of HBM #
HBM surpasses traditional DRAM in multiple critical dimensions.
Increased Memory Bandwidth #
HBM’s wide interface and 3D stacked channels enable dramatically higher bandwidth than DDR5.
Improved Power Efficiency #
Closer proximity between dies and lower operating voltage reduce energy consumption significantly.
High Memory Capacity #
Stacked dies allow dense, high-capacity memory integrated within a single compact package.
Faster Transfer Rates #
HBM’s architecture supports exceptionally fast data transfers—ideal for AI, graphics, and data-heavy HPC workloads.
🧱 HBM Configurations #
HBM’s architecture allows multiple configurations optimized for performance and integration.
5D Multi-Modal Packaging System #
Beyond simple 3D stacking, the 5D Multi-Modal Packaging System combines multiple dimensions of integration—including interconnect layers and advanced packaging assembly—to deliver unmatched performance density.
3D Stacked DRAM #
HBM’s foundation: vertically stacked DRAM layers connected by TSVs. These enable short, fast communication paths and ultra-high bandwidth.
3D Stacked Memory Architecture #
Dense micro-bump connections and TSV integration create a highly compact memory system with dramatically reduced latency and increased efficiency—far beyond what 2D DRAM architectures can achieve.
🔄 HBM vs. Traditional DRAM Solutions #
| Feature | High Bandwidth Memory (HBM) | Traditional DRAM (DDR5) |
|---|---|---|
| Memory Bandwidth | Very High (≥256 GB/s) | Much Lower (≤32 GB/s) |
| Power Consumption | Much Lower | Higher |
| Memory Capacity | High (3D stacked) | Lower (planar limits) |
| Transfer Rates | ≥100 Gbps | 8–14 Gbps |
| Physical Footprint | Small, compact | Larger |
Memory Bandwidth Comparison #
HBM delivers ≥256 GB/s, far surpassing DDR’s ~32 GB/s, giving it a massive performance edge.
Power Consumption Comparison #
HBM’s short interconnects and low voltage dramatically improve energy efficiency.
Memory Capacity Comparison #
Vertical stacking enables higher capacity without increasing footprint.
Transfer Rates Comparison #
HBM achieves >100 Gbps, greatly outpacing DDR’s maximum of 14 Gbps, making it ideal for real-time AI and advanced workloads.
