Intel Granite Rapids-WS: Decoding the Turbo Frequency Map
Intel has released the detailed turbo frequency matrix for its Granite Rapids-WS workstation platform. For professionals, this is not just a specification update—it is a performance boundary map revealing how SSE, AVX2, AVX-512, and AMX instructions reshape sustained clock behavior under load.
In the AI era, advertised peak frequency matters less than sustainable throughput.
🏁 Flagship Focus: Xeon 698X #

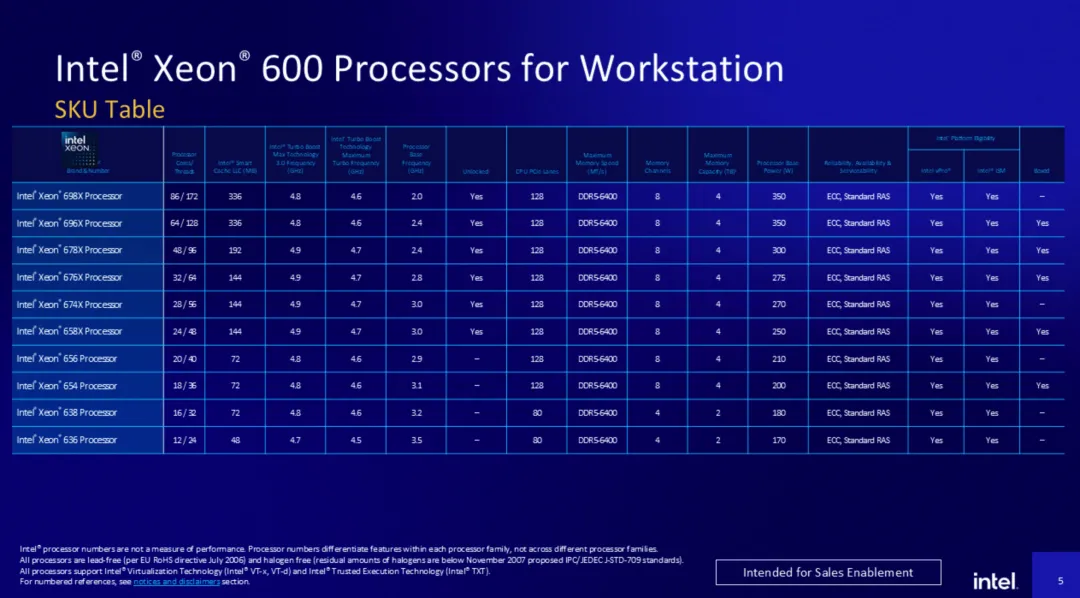

At the top of the stack sits the Xeon 698X, engineered for extreme workstation workloads.
Core Specifications #
- Cores / Threads: 86C / 172T
- L3 Cache: 336MB
- Base TDP: 350W
- Max Turbo Power: Up to 420W
- Peak Frequency:
- 4.8 GHz (Turbo Boost Max 3.0 favored cores)
- 4.6 GHz (Turbo Boost 2.0)
Unusually for Xeon, this SKU supports overclocking, targeting high-end workstation enthusiasts and specialized compute deployments.
But the headline 4.8 GHz only tells part of the story.
📉 The Frequency Cliff: Instruction Set Scaling #
As workloads transition from scalar code to wide vector and matrix instructions, frequency declines sharply.
| Workload Type | Base Frequency | All-Core Turbo (Typical) | Single-Core Peak |
|---|---|---|---|
| SSE | 2.0 GHz | ~3.0 GHz | 4.8 GHz |
| AVX2 | 1.7 GHz | ~2.9 GHz | — |
| AVX-512 | 1.3 GHz | ~2.5 GHz | — |
| AMX | 1.1 GHz | ~2.0 GHz | — |
This drop is not a design flaw. It is a deliberate electrical safeguard.
⚡ Why Frequencies Fall Under AVX-512 and AMX #
When 86 cores execute high-density instructions simultaneously, power density becomes the primary constraint.
Current Spikes #
- AVX-512 and AMX operate on significantly wider data paths.
- Each cycle moves far more data than SSE.
- Instantaneous current draw increases dramatically.
Maintaining 4+ GHz under full AMX load would exceed safe electrical limits for voltage regulator modules (VRMs) and silicon reliability.
Independent Voltage-Frequency Curves #
Granite Rapids-WS uses separate V-F curves for:
- Scalar workloads
- AVX2
- AVX-512
- AMX
This avoids rapid frequency oscillation (“jitter”) and ensures stable, predictable performance under sustained heavy vector workloads.
Stability is prioritized over headline clock numbers.
🧠 Real-World Workstation Perspective #
For AI inference (AMX-heavy) or scientific computing (AVX-512-heavy), realistic operating frequencies sit between:
- 2.0 GHz (AMX)
- 2.5 GHz (AVX-512)
This range represents sustained throughput under full-core load.
Granite Rapids-WS is designed to:
- Maintain long-duration vector workloads
- Avoid thermal throttling
- Deliver predictable compute density
It can sprint to 4.8 GHz in lightly threaded tasks, but its architectural strength lies in marathon stability.
🧩 Platform Advancements: W890 Chipset #
Beyond core performance, the workstation platform introduces major I/O capabilities.
PCIe Gen 5 Expansion #
- 128 PCIe Gen 5 lanes directly from the CPU
- Enables dense multi-GPU or accelerator configurations
Memory Subsystem #
- 8-channel DDR5-6400 support
- MRDIMM compatibility up to 8000 MT/s
High-bandwidth memory throughput is critical for AI and simulation workloads.
CXL 2.0 Support #
- Enables memory pooling and expansion
- Supports next-generation accelerators
- Improves composable infrastructure flexibility
CXL integration positions Granite Rapids-WS for heterogeneous compute environments.
🎯 The Bigger Picture #
Granite Rapids-WS illustrates a broader industry shift:
- Peak clocks are marketing metrics.
- Sustained vector throughput defines real AI-era performance.
The turbo frequency matrix exposes the electrical realities of 86 cores executing dense matrix operations simultaneously.
In the AI age, performance is no longer about how fast a CPU can sprint.
It is about how long it can hold the line under extreme vector pressure.
