Japan’s Rapidus Breaks Through 2nm Process: A Potential Challenger to TSMC

#

Japan’s semiconductor landscape is witnessing a historic comeback. Rapidus, a Japanese chipmaker, has made a breakthrough in the 2nm process node, positioning itself as a serious challenger to TSMC, the global leader in advanced semiconductor manufacturing.

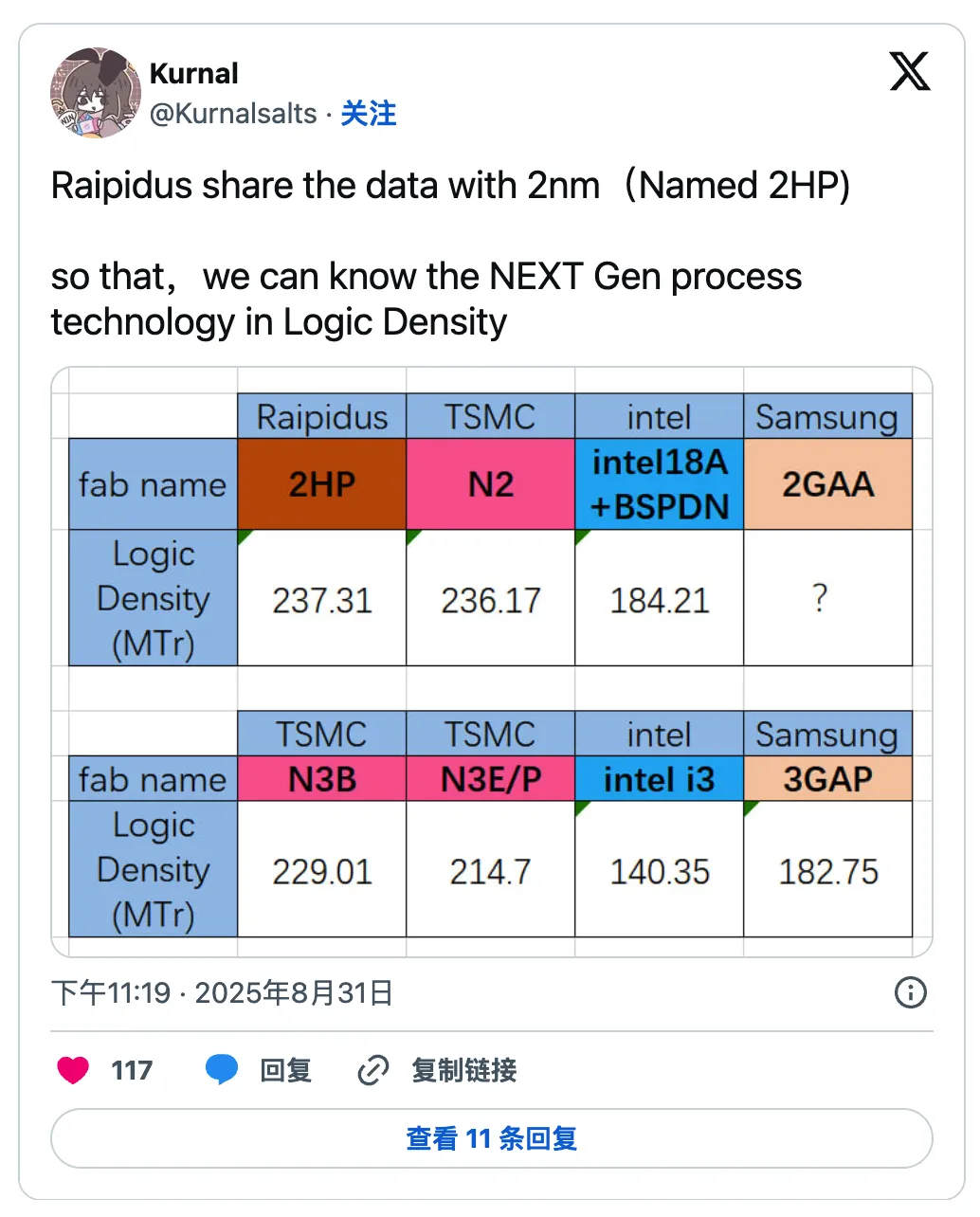

Recent data shows that Rapidus’s 2HP node has achieved a logic density of 237.31 MTr/mm², nearly matching TSMC’s N2 process. This milestone signals that Japan, once absent from the top-tier foundry race, is re-entering the arena with bold ambitions.

Rapidus vs. TSMC, Samsung, and Intel

#

For years, the advanced logic foundry market has been dominated by TSMC, Samsung, and Intel. Now, Rapidus is emerging as a fourth contender.

• TSMC (Taiwan): Expected to begin 2nm mass production in late 2025.
• Samsung (South Korea): Actively pursuing competitiveness at the same node.
• Intel (USA): Its 18A process (184.21 MTr/mm²) lags in density due to a backside power delivery network (BSPDN), which prioritizes efficiency over maximum density.
• Rapidus (Japan): By adopting a high-density (HD) cell library with 138 cell height and a G45 pitch, Rapidus is signaling a density-first strategy to rival TSMC directly.

This differentiation shows how Rapidus is aiming not just to catch up—but to compete head-to-head with global leaders.

Unique Approach to Manufacturing

#

Unlike its competitors, Rapidus is avoiding an immediate large-scale mass production push. Instead, it has chosen a single-wafer front-end process strategy to gradually improve yield and performance.

• Short-term: Limited production volumes
• Mid-term: Continuous R&D optimization with reduced risk
• Roadmap:
  • 2026 Q1 – Provide a 2nm PDK (Process Design Kit) for customer design verification
  • 2027 – Target for stable mass production

This cautious yet flexible approach could help Rapidus build reliability before scaling up.

Government Support and Global Partnerships

#

Rapidus’s rise is strongly supported by the Japanese government, which has made semiconductor revitalization a national strategy. Backed by funding, policies, and talent initiatives, Rapidus represents Japan’s attempt to rebuild its domestic chip industry.

Key highlights:

• Government backing ensures long-term stability and R&D resources.
• International collaborations: Partnerships with global tech companies, including NVIDIA, highlight trust from industry leaders.
• Supply chain resilience: Japan’s re-entry offers global customers a new foundry partner, reducing over-reliance on Taiwan, Korea, and the U.S.

The Challenges Ahead

#

While Rapidus’s density results are impressive, the real challenge lies ahead:

• Can it scale up mass production efficiently?
• Will it achieve stable yields by 2027?
• Can it build a complete ecosystem of IP, EDA tools, and customer adoption?

Without these, paper specifications may not translate into true competitiveness.

Global Semiconductor Landscape

#

The 2nm process is more than a technical milestone—it’s a geopolitical battleground:

• TSMC represents Taiwan’s dominance.
• Samsung reflects South Korea’s ambition.
• Intel is America’s key player.
• Rapidus signals Japan’s comeback as a semiconductor powerhouse.

If Rapidus succeeds in meeting its 2026–2027 roadmap, it could reshape the global foundry market, elevate Japan’s strategic position, and diversify the world’s advanced chip supply chain.

Conclusion

#

Rapidus’s breakthrough to achieve logic density nearly equal to TSMC’s N2 node marks a turning point for Japan’s semiconductor industry. The coming years will be critical: delivering a PDK in 2026 and reaching mass production by 2027 will determine whether Japan can reclaim a top spot in the global chip race.

With government support, global partnerships, and a bold technical roadmap, Rapidus is no longer just chasing—it is becoming a potential leader in the 2nm era.
