TSMC has officially crossed a historic threshold. As of Q4 2025, the foundry has moved its N2 (2nm) process into mass production, quietly confirming the transition on its customer-facing portal. With this step, the semiconductor industry formally enters the Gate-All-Around (GAA) era at scale.
This is not a routine node shrink—it is the most significant transistor architecture change since FinFET was introduced over a decade ago.
🔬 From FinFET to GAA: Why N2 Matters #
N2 represents a clean architectural break from FinFET, replacing vertical fins with GAA nanosheet transistors.
Key technical shifts include:
-
Full Gate Enclosure
The gate wraps entirely around the channel, delivering superior electrostatic control and sharply reducing leakage. -
Improved Power Integrity
TSMC integrates SHPMIM (Super High-Performance MIM) capacitors, doubling capacitance density and cutting Rs/Rc by roughly 50%—a critical upgrade for high-current AI and mobile SoCs.

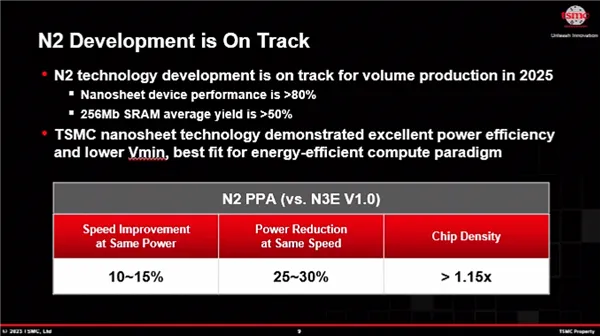

📈 Claimed Gains vs. N3E #
- Performance: +10–15% at iso-power
- Power Efficiency: −20–25% at iso-performance
- Transistor Density: +15%
While density scaling slows at 2nm, efficiency gains remain the primary driver—especially for thermally constrained designs.
🏁 Who Gets N2 First? #
Historically, TSMC’s leading-edge nodes debut with a single anchor customer. The question for 2nm is not if Apple leads—but how contested the capacity will be.
-
Apple (Front-Runner)
Apple is widely expected to launch N2 with the A19 Pro, likely powering future iPhone Pro models. As with prior nodes, Apple is positioned to absorb the majority of early wafer starts. -
NVIDIA (AI Pressure Cooker)
With AI accelerators pushing power density limits, NVIDIA is rumored to be evaluating N2 for post-Rubin architectures. If confirmed, this would mark one of the earliest non-mobile N2 deployments. -
Intel (Strategic Customer)
Despite its internal 18A push, Intel continues to rely on TSMC for selected compute and graphics tiles, keeping it firmly in the N2 ecosystem.
Unlike previous generations, AI infrastructure demand may prevent any single customer from fully monopolizing early capacity.

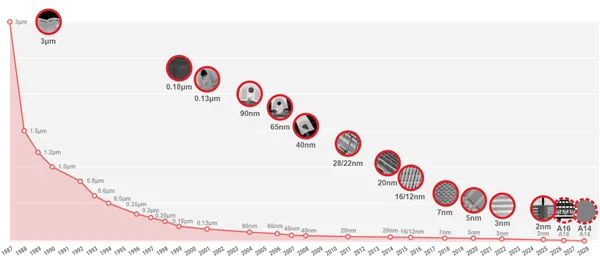

🧭 Beyond N2: The 2nm Family Roadmap #
TSMC’s 2nm strategy extends well beyond the initial N2 release:
| Node | Mass Production | Defining Feature |
|---|---|---|
| N2 | Q4 2025 | First GAA nanosheet node |
| N2P | H2 2026 | +5–10% perf/efficiency refinement |
| N2X | 2027 | High-voltage, HPC-focused variant |
| A16 | H2 2026 | Backside power delivery (SPR) |
⚡ A16 and Super Power Rail (SPR) #
Running parallel to N2P, TSMC’s A16 node introduces Super Power Rail (SPR)—a backside power delivery network.
Why it matters:
- Separates power and signal routing
- Reduces IR drop and congestion
- Improves frequency headroom and density
SPR is especially attractive for AI accelerators and HPC CPUs, where power delivery—not transistor speed—is increasingly the limiting factor.
🧾 Final Takeaway #
The move to 2nm is not just about smaller transistors—it is about power efficiency, signal integrity, and scalability in an AI-dominated era. While consumer products will not appear until 2026, the competitive battle for N2 wafers is already underway.
Apple remains the most likely first mover, but unprecedented AI demand means N2 may be the most hotly contested node in TSMC’s history.
