AMD Ryzen 9850X3D and 9950X3D2: Zen 5 X3D Explained

#

AMD could be preparing to expand its Zen 5 desktop processor lineup with two new X3D models: the Ryzen 7 9850X3D and the rumored Ryzen 9 9950X3D2. Rather than introducing an entirely new CPU architecture, these processors are expected to refine AMD’s existing design through higher clock speeds and a more aggressive application of 3D V-Cache.

The Ryzen 7 9850X3D is reportedly designed to improve gaming performance through higher boost frequencies while retaining the established eight-core configuration and 96MB of L3 cache. The Ryzen 9 9950X3D2, meanwhile, could represent a more substantial packaging change by extending 3D V-Cache to both compute dies (CCDs), potentially increasing total L3 cache to 192MB.

If these specifications prove accurate, the two processors would serve different purposes within AMD’s desktop lineup. The 9850X3D would target enthusiasts seeking incremental gaming improvements, while the 9950X3D2 could appeal to users running cache-sensitive workloads across a larger number of CPU cores.

Both configurations remain subject to the accuracy of the reported specifications and their eventual commercial positioning.

🎮 Ryzen 7 9850X3D: Higher Clocks for Gaming

#

The rumored Ryzen 7 9850X3D represents the more conventional evolution of AMD’s X3D strategy. It is expected to retain the Zen 5 architecture and single-CCD design of the Ryzen 7 9800X3D while targeting a higher maximum boost frequency.

Reported Specifications

#

The reported 5.6 GHz maximum boost frequency would represent an increase of approximately 400 MHz over the Ryzen 7 9800X3D’s 5.2 GHz stock boost specification.

Although that increase appears modest on paper, higher operating frequencies can improve performance in CPU-bound games and applications that respond well to additional clock speed. The magnitude of the improvement will depend on workload characteristics, sustained boost behavior, and the processor’s voltage and thermal limits.

Early performance estimates have suggested gains of around 5% in selected single-threaded and multithreaded workloads. However, those estimates should not be treated as verified benchmark results without independently reproducible testing.

Why Higher Frequencies Matter for X3D

#

AMD’s 3D V-Cache technology increases the amount of L3 cache available to the CPU by stacking additional SRAM directly onto the processor’s compute die.

This expanded cache can reduce accesses to system memory, benefiting workloads that repeatedly access large data sets. In gaming, the result can be higher frame rates and improved frame-time consistency when a game’s working set benefits from the additional cache.

The challenge is maintaining high CPU frequencies while managing the thermal and electrical characteristics of the stacked design.

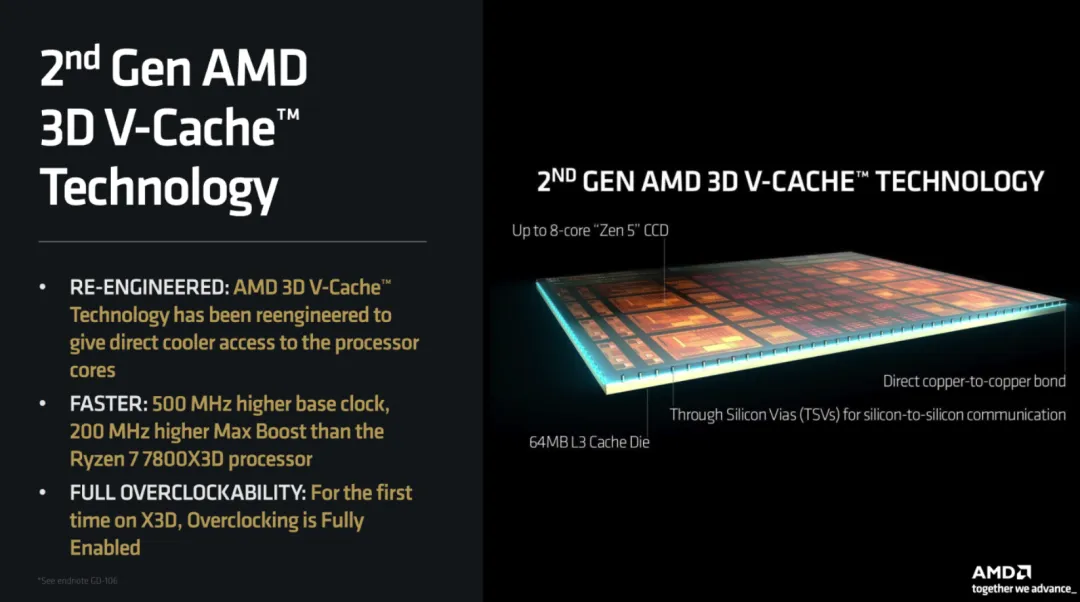

AMD’s second-generation 3D V-Cache implementation, used by Zen 5 X3D processors, places the additional cache beneath the compute die rather than directly above the CPU cores. This arrangement improves the thermal path from the cores to the heat spreader, helping address a major constraint of earlier X3D designs.

For more technical context, see AMD Ryzen 9000X3D: The Upside-Down Cache Breakthrough.

If the rumored 9850X3D specifications are accurate, a higher boost ceiling would continue this optimization strategy without requiring a substantial change to the underlying architecture.

🔬 Ryzen 9 9950X3D2: A Dual-CCD 3D V-Cache Flagship

#

The more technically ambitious rumored processor is the Ryzen 9 9950X3D2. Unlike the conventional single-CCD X3D configuration, this model is reportedly designed to feature 3D V-Cache on both CPU compute dies.

That configuration could increase total L3 cache to 192MB while retaining the 16-core, 32-thread design associated with AMD’s high-end Ryzen 9 desktop processors.

Reported Specifications

#

The defining feature is the proposed symmetrical cache configuration. Rather than equipping one CCD with additional 3D V-Cache and leaving the other without it, the 9950X3D2 would reportedly provide expanded cache on both compute dies.

This could address one of the architectural complexities associated with existing dual-CCD X3D processors: differences in cache capacity between the two CCDs.

Why Dual-CCD Cache Stacking Matters

#

A conventional dual-CCD Ryzen processor can distribute workloads across two compute dies, but cache-sensitive tasks may behave differently depending on which CCD executes them.

In asymmetric X3D designs, one CCD has additional stacked cache while the other relies on its native cache. Operating-system scheduling and application behavior can therefore influence whether a workload benefits fully from the expanded cache.

A dual-X3D configuration could make cache capacity more consistent across both CCDs, potentially improving performance predictability for workloads that span multiple cores.

Potential beneficiaries include:

• Gaming: Some games could benefit from greater cache availability across CPU cores, although improvements would depend on engine behavior and scheduling.
• Software compilation: Large builds may benefit from expanded cache when working sets and access patterns are suitable.
• Scientific computing and simulation: Certain numerical workloads can benefit from reduced memory traffic and improved data locality.
• Content creation: Cache-sensitive rendering, encoding, and other multithreaded workloads could see gains depending on their execution characteristics.

A larger cache does not guarantee higher performance in every application. Memory access patterns, synchronization overhead, workload distribution, and the effectiveness of the software’s parallelization remain important factors.

Thermal and Power Trade-Offs

#

Equipping both CCDs with stacked cache increases packaging complexity and introduces additional thermal-management considerations.

The rumored 200W TDP would be higher than the 170W TDP associated with the standard Ryzen 9 9950X3D. This could reflect a different power and thermal strategy for accommodating the more extensive cache configuration.

The reported maximum boost frequency of 5.6 GHz would also be lower than the standard Ryzen 9 9950X’s 5.7 GHz maximum boost specification. However, maximum boost clocks alone cannot establish which processor will deliver better sustained performance.

Actual performance would depend on cooling capacity, power limits, workload distribution, and the frequency each core can maintain during sustained operation.

Consequently, the 9950X3D2 could prioritize a more consistent cache architecture and stronger performance in selected cache-sensitive workloads rather than maximizing peak single-threaded frequency.

🔮 AMD’s Zen 5 X3D Strategy: Frequency Versus Cache Capacity

#

Taken together, the rumored processors suggest two different approaches to extending the life of AMD’s Zen 5 desktop platform.

The Ryzen 7 9850X3D would focus on refining a proven gaming-oriented configuration through higher boost frequencies. The Ryzen 9 9950X3D2 would pursue a more ambitious design by expanding the use of 3D V-Cache across a high-core-count processor.

Ryzen 9850X3D vs. Ryzen 9950X3D2

#

These configurations address different requirements rather than competing directly for the same user.

The 9850X3D would be the more straightforward option for gaming systems that prioritize high frame rates, particularly at lower resolutions where CPU performance has a greater influence on results.

The 9950X3D2 would target users who can take advantage of 16 CPU cores and a much larger cache pool. Its value would depend on whether the additional cache improves real-world performance enough to justify the higher power requirements and expected premium pricing.

🏗️ Manufacturing Complexity and Product Positioning

#

A dual-CCD X3D design introduces additional packaging requirements compared with a processor that uses only one cache-stacked CCD.

Both compute dies must meet the requirements for integrating the additional cache while maintaining acceptable electrical behavior, thermal performance, and manufacturing yield. These constraints can increase product cost and limit the number of suitable dies.

Zen 5’s physical implementation and AMD’s continued development of 3D V-Cache may provide opportunities to refine the process, but the practical manufacturing advantages cannot be established from rumored specifications alone.

A Flagship Demonstration of 3D V-Cache

#

If launched as described, the Ryzen 9 9950X3D2 could serve as a high-end demonstration of AMD’s ability to scale 3D V-Cache across multiple compute dies.

Its role would likely be narrower than that of mainstream Ryzen processors because the additional cache, packaging complexity, and reported power requirements could increase manufacturing costs and system requirements.

Nevertheless, a successful dual-CCD implementation could provide a foundation for future designs in which cache capacity is expanded without restricting additional cache to only part of the CPU.

For AMD, this would represent an opportunity to broaden the applications of 3D V-Cache beyond its established gaming niche.

📊 Expected Performance and Competitive Implications

#

The likely performance characteristics of the two processors differ according to their hardware configurations.

The Ryzen 7 9850X3D’s higher reported boost frequency could offer incremental gains in lightly threaded workloads and CPU-limited gaming. In practice, the magnitude of any improvement would depend on how consistently it sustains higher clocks and whether the workload is frequency-sensitive.

The Ryzen 9 9950X3D2 could offer a different set of advantages through its larger cache capacity and symmetrical dual-CCD design.

However, more cache does not guarantee proportional gains. Some applications are primarily limited by compute throughput, memory bandwidth, GPU performance, or storage rather than L3 cache capacity. Others may experience limited benefits if their working sets already fit comfortably within the existing cache.

Benchmark comparisons should therefore cover several categories, including gaming at CPU-limited settings, application performance, compilation workloads, simulation, and sustained multithreaded tests.

For gaming-specific context, see AMD Ryzen 7 9800X3D benchmark coverage in Battlefield 6.

Independent testing will be required to determine whether the additional clock speed and cache capacity produce meaningful advantages over existing Ryzen 9000X3D processors.

⚠️ Specifications, Pricing, and Availability Remain Unconfirmed

#

At the time of the original reporting, AMD had not formally announced the Ryzen 7 9850X3D or Ryzen 9 9950X3D2 with the specifications described above. The reported figures should therefore be treated as preliminary rather than confirmed retail specifications.

Several questions remain important to the final assessment:

• Boost behavior: The ability to sustain reported peak frequencies under realistic workloads remains unknown.
• Cache organization: The final cache layout and total capacity of the 9950X3D2 require official confirmation.
• Power and cooling: The rumored 200W TDP would require careful evaluation of thermal behavior under sustained workloads.
• Application scaling: The extent to which gaming, compilation, and professional applications benefit from the expanded cache remains uncertain.
• Pricing and availability: Final pricing and launch details will determine the products’ competitiveness within AMD’s desktop portfolio.

These factors will ultimately establish whether the rumored processors deliver meaningful improvements over existing Zen 5 X3D models.

📝 Conclusion: AMD Could Take Zen 5 X3D in Two Directions

#

The rumored Ryzen 7 9850X3D and Ryzen 9 9950X3D2 illustrate two potential directions for AMD’s Zen 5 desktop portfolio.

The 9850X3D would refine the existing gaming-oriented design with higher reported boost frequencies while retaining eight cores and 96MB of L3 cache. The 9950X3D2 would take a more ambitious approach, potentially combining 16 CPU cores with 192MB of L3 cache through a dual-CCD 3D V-Cache configuration.

If realized, these approaches would demonstrate how AMD can extend its existing CPU architecture through frequency optimization and advanced packaging rather than relying exclusively on a new core design.

The 9850X3D’s success would depend largely on pricing and measurable gaming improvements. The 9950X3D2 would need to demonstrate that its expanded cache delivers tangible benefits across demanding workloads while justifying its higher power requirements and expected premium positioning.

Until official specifications and independent benchmarks are available, both processors should be viewed as part of AMD’s anticipated X3D roadmap rather than fully established performance upgrades.
