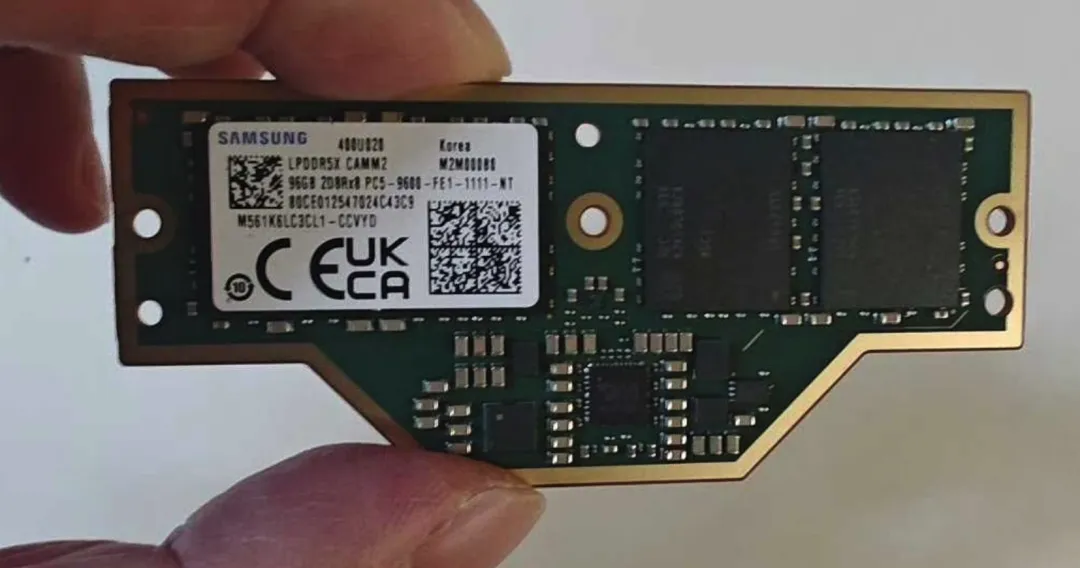

Samsung Unveils Flagship 96GB LPCAMM2: The Future of Laptop Memory
Samsung has introduced a breakthrough 96GB LPCAMM2 memory module, effectively redefining what is possible in high-performance laptops. Combining 96GB capacity with 9600 MT/s LPDDR5X speeds, this module challenges the long-standing trade-off between soldered efficiency and modular flexibility.
For mobile workstations and AI-focused ultrabooks, this is a structural shift—not just a speed bump.
🚀 Breaking the 96GB / 9600 MT/s Barrier #
The new module (Part Number: M561K6LC3CL1-CCVYD) pushes both density and frequency beyond current mainstream offerings.
Key Specifications #
- Capacity: 96GB (single module)
- Speed: 9600 MT/s (LPDDR5X)
- Configuration: 2D8Rx8 PC5
- Form Factor: LPCAMM2
Compared to existing 64GB / 7500 MT/s solutions, this represents:
- ~50% higher maximum capacity
- ~28% higher peak bandwidth
- A significant uplift in memory bandwidth per watt
At 9600 MT/s, theoretical peak bandwidth per 128-bit interface approaches levels previously limited to soldered LPDDR implementations.
🧠 Why LPCAMM2 Changes the Upgrade Equation #
Laptop memory has historically forced users into a binary choice:
| Option | Pros | Cons |
|---|---|---|
| SO-DIMM | Upgradeable | Thicker, slower, higher latency |
| Soldered LPDDR | Faster, lower power | Non-upgradeable |
LPCAMM2 eliminates that compromise.
1️⃣ LPDDR Speed, Modular Design #
LPCAMM2 mounts LPDDR5X chips on a flat compression-attached module, delivering:
- Lower latency vs SO-DIMM
- Lower power consumption
- Modular replaceability
2️⃣ Ultra-Thin Z-Height #
Unlike vertical SO-DIMM slots, LPCAMM2 lies flat against the motherboard.
Benefits include:
- Thinner chassis design
- Improved airflow routing
- Reduced mechanical stress
This is especially critical for high-density 16-inch and 14-inch premium laptops.
3️⃣ Signal Integrity at 9600 MT/s #
At extreme frequencies, trace length and electrical path stability become bottlenecks.
The compression attachment:
- Shortens signal paths
- Improves electrical stability
- Reduces reflection and timing jitter
This engineering is essential for stable 9,600 MT/s operation in mobile thermal envelopes.
⚡ Synergy with Intel Panther Lake #
The 96GB LPCAMM2 module is strategically aligned with Core Ultra Series 3 (Panther Lake) platforms.
Mandatory Bandwidth for Arc Branding #
Reports indicate Panther Lake requires at least 7,467 MT/s memory speed to fully unlock its Arc Graphics branding.
At 9600 MT/s, Samsung’s module:
- Exceeds Intel’s minimum threshold
- Maximizes Xe3 GPU throughput
- Improves iGPU gaming and content creation performance
AI & Large Model Workloads #
With 96GB of high-speed unified memory available to CPU, GPU, and NPU:
- 14B+ parameter local LLMs become viable
- Large creative assets fit in memory
- On-device AI inference scales dramatically
For AI-capable laptops, memory capacity is often more limiting than compute. This module directly addresses that constraint.
📊 Market Positioning #
| Metric | Current High-End | Samsung LPCAMM2 (2026) |
|---|---|---|
| Max Capacity | 32GB / 64GB | 96GB |
| Max Frequency | 6400 / 7500 MT/s | 9600 MT/s |
| Primary Platform Target | Lunar Lake / Meteor Lake | Panther Lake (Core Ultra 300) |
This positions Samsung at the forefront of next-generation mobile memory infrastructure.
🏭 Production Timeline & Outlook #
The module is currently in the validation phase, with early hardware sightings shared by OEM partners.
Expected mass production: Second half of 2026
Target devices:
- Premium gaming laptops
- Mobile workstations
- AI-focused ultrabooks
If adoption accelerates, LPCAMM2 may become the new default for high-end laptops—replacing both SO-DIMM and soldered LPDDR designs.
🧩 Final Perspective #
Samsung’s 96GB LPCAMM2 is not merely a capacity upgrade—it is a platform enabler.
By merging:
- LPDDR5X efficiency
- Modular serviceability
- Extreme bandwidth
It reshapes the laptop memory hierarchy for the AI era.
The soldered vs modular debate may finally be over.
