AMD Advancing AI 2026: Venice, MI455X, Helios and 2030 Roadmap

AMD’s Advancing AI 2026 event in San Francisco outlined an unusually broad data center and AI computing strategy extending from server CPUs and accelerators to rack-scale systems and physical AI.

Built around three strategic themesβ€”Leadership Compute, Open Platforms, and AI Everywhereβ€”AMD presented products and roadmaps spanning the company’s EPYC server CPU portfolio, Instinct accelerator family, Helios rack systems, and embedded processors for robotics and industrial workloads.

The announcements also established a longer-term execution path through 2030, including next-generation Zen architectures, CDNA accelerators, HBM4E, optical interconnects, and increasingly integrated rack-scale platforms.

The result is a strategy that positions AMD to compete not only at the individual silicon level but across the entire AI infrastructure stack.

πŸ–₯️ 6th-Generation EPYC “Venice” Server Processors
#

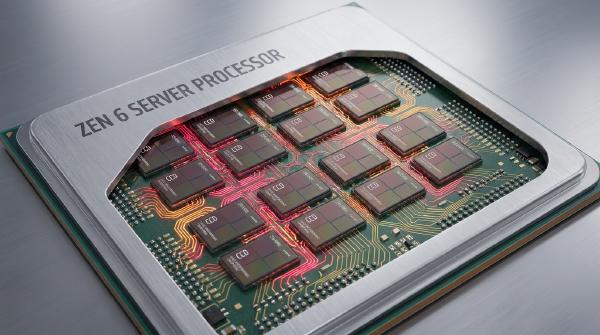

AMD officially introduced its 6th-generation EPYC “Venice” family, marking a major transition to Zen 6-based server processors and TSMC’s 2nm process technology.

Venice is divided into several product families targeting different combinations of AI inference, enterprise computing, HPC, memory bandwidth, and power efficiency.

Venice product segmentation
#

Sub-Family Target Workload Core Configuration Launch Window
SP7 Dense AI and agent workloads Up to 256 Zen 6c cores Q4 2026
SP8 Mainstream enterprise 8–128 Zen 6 cores H1 2027
SP7 X HPC and AI preprocessing 96 cores + 1,152MB 3D V-Cache H2 2027
LP / Verano Low-power AI host nodes Up to 72 Zen 6 cores H2 2027

This segmentation allows AMD to use the Venice architecture across substantially different server configurations rather than treating all data center workloads as a single market.

EPYC 9006 SP7
#

The flagship EPYC 9006 SP7 reportedly integrates approximately 203 billion transistors.

Its compute chiplets are manufactured using TSMC’s 2nm process, while the I/O die uses a 6nm process.

The platform scales to:

  • 256 Zen 6c cores
  • 512 threads
  • Up to 1.6 TB/s memory bandwidth
  • PCIe 6.0
  • Up to 5.0 GHz boost frequency across 96 active cores

The combination of high core density and high memory bandwidth is particularly relevant to AI agent infrastructure, where CPUs increasingly handle orchestration, data preparation, retrieval, memory management, and token dispatch alongside dedicated accelerators.

SP8 enterprise platform
#

The SP8 family targets conventional enterprise infrastructure and supports configurations from 8 to 128 cores.

It provides:

  • 8-channel DDR5 memory
  • Up to 128 PCIe 6.0 lanes
  • Single-socket and dual-socket configurations

This makes SP8 a more flexible option for general-purpose data center deployments where maximum core density is less important than balanced I/O, memory capacity, and platform compatibility.

EPYC 9006X SP7 and 3D V-Cache
#

The SP7 X family is designed for workloads that benefit from extremely large cache capacity, including HPC and AI preprocessing.

The EPYC 9006X SP7 configuration reportedly combines 96 cores with 1,152MB of 3D V-Cache.

Memory configurations include 16-channel DDR5-8000 or MRDIMM-12800, providing up to approximately 1.6 TB/s of memory bandwidth.

Boost frequencies can reach approximately 5.15 GHz, emphasizing the platform’s focus on high single-thread and cache-sensitive workloads in addition to aggregate throughput.

Low-power “Verano” platform
#

AMD’s low-power LP, or “Verano,” variant targets AI host and orchestration nodes.

The design scales to:

  • 72 Zen 6 cores
  • Up to 5.0 GHz boost
  • 24-channel LPDDR5X
  • Field-replaceable SOCAMM2 memory
  • Enhanced xGMI at 112 Gbps per lane

The objective is to provide dense CPU resources without imposing the power envelope associated with conventional high-end server processors.

πŸ“ˆ Venice Performance and Efficiency
#

AMD positioned Venice as a substantial generational improvement for AI and general-purpose data center workloads.

According to AMD’s comparisons, Venice delivers approximately 20% higher single-core performance and up to 2.2Γ— higher aggregate throughput than NVIDIA’s Vera CPU platform.

Within a 100 kW rack-level power constraint, AMD claims that Venice can provide approximately 3.3Γ— the overall performance of NVIDIA Vera and more than 2Γ— the performance of Intel’s Xeon 6980P in the cited workloads.

The company also reports several efficiency improvements relative to previous-generation EPYC processors:

  • 1.7Γ— AI agent processing capacity per watt
  • 1.4Γ— performance per watt
  • 1.8Γ— token throughput per second

These claims should be interpreted as workload-specific vendor comparisons rather than universal benchmarks, but they illustrate AMD’s focus on CPU efficiency as AI infrastructure increasingly incorporates CPU-driven orchestration and inference workloads.

Ecosystem support
#

Launch and deployment partners include Microsoft, Meta, AWS, Google Cloud, and Oracle Cloud, along with OEMs such as Dell, Supermicro, HPE, and Lenovo.

AMD has not disclosed final pricing for the Venice family.

πŸš€ Instinct MI455X: AMD’s 2nm AI Accelerator
#

AMD also unveiled the Instinct MI455X, the company’s flagship accelerator based on the new CDNA 5 architecture.

The MI455X is positioned as a major generational upgrade over the MI355X, combining TSMC 2nm compute chiplets with significantly greater HBM capacity and bandwidth.

The accelerator reportedly integrates approximately 320 billion transistors and supports up to 432GB of HBM4.

MI455X versus MI355X
#

Parameter MI355X MI455X
HBM Capacity 288GB HBM3E 432GB HBM4
Memory Bandwidth 8.0 TB/s 23.3 TB/s
MXFP8 Compute 5.0 PFLOPS 20.0 PFLOPS
MXFP4 Compute 10.0 PFLOPS 40.0 PFLOPS
DeepSeek-V3 Inference Baseline Up to 34Γ— token throughput
Cost per Token Baseline Up to 18Γ— lower

The most significant improvement is not simply raw compute.

The combination of 432GB HBM4 and 23.3 TB/s of memory bandwidth substantially expands the amount of model state that can remain close to the compute engines while increasing the rate at which data can be supplied.

This is particularly important for large-model inference, where memory capacity and bandwidth can become more important than theoretical arithmetic throughput.

🧬 CDNA 5 Architectural Changes
#

The MI455X introduces several architectural changes compared with previous Instinct generations.

WGP-based compute organization
#

AMD is shifting from conventional Compute Unit organization toward Workgroup Processors (WGPs).

Each Accelerator Complex Die (XCD) contains two shader engines with 17 physical WGPs, of which 16 are active and one can be used for yield harvesting.

This organization provides AMD with additional flexibility in managing die-level redundancy and manufacturing yield while changing how compute resources are structured internally.

Fabric and Cache Dies
#

The MI455X also introduces dedicated Fabric and Cache Dies (FCDs) beneath the XCDs.

The L2 cache is distributed across two FCDs, each providing 96MB of L2 cache.

The FCDs use 3D hybrid bonding based on TSMC’s SoIC technology and connect to HBM4 channels and the surrounding compute fabric.

This vertical architecture allows AMD to separate compute, cache, and fabric functions while using 3D integration to maintain high-bandwidth connections between them.

Advanced packaging
#

MI455X combines multiple packaging technologies.

The package uses an organic substrate with TSMC CoWoS-L 2.5D packaging, incorporating embedded silicon bridges for high-density horizontal connections.

Meanwhile, 3D hybrid bonding provides vertical connections between the XCDs and cache structures.

This creates a heterogeneous package in which different interconnect technologies are optimized for different physical communication requirements.

Wave32 execution
#

CDNA 5 also shifts the primary execution model toward Wave32, moving away from native Wave64 execution.

The smaller wavefront can reduce instruction latency, register pressure, and branch divergence for workloads that do not benefit from wider execution groups.

AMD also introduces hardware-level tanh instructions intended to increase transcendental-function throughput.

Decoupled data movement
#

The architecture introduces a Tensor Data Mover (TDM) for asynchronous transfers between global memory and Local Data Share without requiring register staging.

System DMA is similarly decoupled from the physical back-end execution engines.

The objective is to reduce unnecessary synchronization between software queues and hardware execution resources while improving data movement efficiency, particularly in multi-GPU systems.

🏒 Helios: AMD’s Rack-Scale AI Platform
#

AMD’s strategy extends beyond individual processors through Helios, a rack-scale AI system designed to compete with NVIDIA’s integrated NVL-class platforms.

Helios combines Venice CPUs and MI455X accelerators into a unified compute infrastructure.

The platform is already in production, with volume shipments expected to begin toward the end of Q3 2026.

Helios ecosystem
#

Category Organizations
Cloud Providers OpenAI, Microsoft Azure, Meta, AWS, Google Cloud, Oracle
OEM Systems Dell, Supermicro, HPE, Lenovo
Specialized Infrastructure Cerebras Data Centers through a joint AMD-Cerebras rack portfolio

The significance of Helios is that AMD is no longer competing solely on accelerator specifications.

The company is providing a complete infrastructure building block that combines CPU compute, GPU acceleration, memory, interconnect, networking, software, and rack-level power and thermal design.

πŸ’° Major AI Infrastructure Agreements
#

AMD also highlighted several large-scale customer relationships that could accelerate deployment of its Instinct and Helios platforms.

OpenAI agreement
#

AMD announced a multi-year agreement with OpenAI that is expected to generate tens of billions of dollars in annual revenue for AMD.

Initial Helios deployments are planned for late 2026, followed by broader scaling in 2027.

The agreement includes commitments around future MI500-series accelerators and an option for OpenAI to acquire up to a 10% equity stake in AMD.

Anthropic agreement
#

AMD also announced a supply agreement with Anthropic beginning in the first half of 2027.

The agreement covers up to 2 GW of Instinct MI450-class accelerators, alongside as much as $5 billion in joint infrastructure investment aimed at optimizing Anthropic’s Claude workloads on ROCm.

These agreements would provide AMD with large anchor customers capable of deploying accelerators at hyperscale.

AMD’s AI infrastructure market outlook
#

AMD estimates that the total compute addressable market could reach approximately $2 trillion by 2030.

The company’s projections allocate approximately:

  • $1.4 trillion to AI accelerators
  • $220 billion to server CPUs
  • Remaining value to other compute and infrastructure segments

The estimates demonstrate why AMD is pursuing an integrated platform strategy rather than treating CPUs and accelerators as independent businesses.

πŸ€– Ryzen AI Embedded X100 Targets Physical AI
#

AMD also expanded its AI strategy beyond data centers with the Ryzen AI Embedded X100 family.

The processor brings the high-performance “Strix Halo” APU architecture into robotics, industrial automation, edge computing, and other physical-AI applications.

The platform is designed for continuous operation and supports a targeted 10-year product lifecycle.

X100 family specifications
#

Model Zen 5 Cores RDNA 3.5 CUs NPU Maximum Boost
X199 / X199i 16 40 50 TOPS Up to 5.1 GHz
X188 / X188i 12 32 50 TOPS Up to 5.1 GHz
X168 / X168i 8 32 50 TOPS Up to 5.1 GHz

The architecture combines:

  • Zen 5 CPU cores
  • RDNA 3.5 graphics
  • 50 TOPS XDNA 2 NPU
  • Up to 128GB unified memory
  • Configurable 45W–120W TDP

The industrial “i” variants support extended operating temperatures from -40Β°C to 105Β°C, making them more suitable for demanding industrial environments.

βš™οΈ Physical AI Performance and Development Stack
#

AMD positions the X100 family for robotics and autonomous industrial systems where deterministic control, sustained operation, and local inference are more important than peak cloud-scale throughput.

Against Intel’s Core Ultra X7 358H at a 45W power envelope, AMD claims that the flagship X199 delivers:

  • 2.1Γ— multi-threaded CPU performance
  • 1.7Γ— graphics performance
  • 3.5Γ— token-generation throughput
  • 1.4Γ— faster time-to-first-token

Kria AI System-on-Module
#

AMD also highlighted a Kria AI SoM using a COM-HPC-compatible 120mm Γ— 120mm footprint.

The platform can achieve approximately 125 microseconds of deterministic control latency, targeting robotics and industrial automation systems where predictable response times are critical.

CUDA-to-HIP migration
#

AMD is continuing to invest in ROCm adoption through tools such as HIPIFY.

The automated CUDA-to-HIP C++ translation workflow reportedly achieves approximately 70%–80% automated migration rates for selected industrial vision workloads.

Mass production is scheduled to begin in Q4 2026.

For AMD, improving migration tooling is strategically important because software compatibility remains one of the largest barriers to replacing established CUDA-based infrastructure.

πŸ—ΊοΈ AMD’s 2026–2030 Data Center Roadmap
#

AMD also presented a longer-term roadmap spanning server CPUs, AI accelerators, and rack-scale systems.

CPU roadmap
#

Year Platform Key Technology
2026 EPYC Venice Zen 6, 2nm
2028 EPYC Florence Zen 7/7c, 1.4nm-class process, ACE instructions, LPDDR6
2030 EPYC Ravenna Zen 8 family

The roadmap indicates that AMD intends to maintain an aggressive cadence of CPU architecture updates while continuing to transition to more advanced process nodes.

GPU roadmap
#

Year Platform Key Technology
2026 Instinct MI455X CDNA 5, 2nm, HBM4
2027 Instinct MI500 HBM4E, copper/optical interconnects
2028 Instinct MI600 Next-generation CDNA

The MI500 generation is particularly notable because AMD is planning to incorporate HBM4E and copper/optical interconnect technologies, reflecting the increasing importance of communication bandwidth as accelerator clusters scale.

Rack-system roadmap
#

Year Platform Configuration
2026 Helios Venice CPU + MI455X
2027 Helios 500 Verano LP CPU + MI500 + Pensando Monza
2028 Helios 600 Zen 7 CPU + MI600 + Pensando Palma/Levanzo

This progression illustrates AMD’s intention to evolve from individual compute components toward increasingly complete rack-level architectures.

πŸ“Š AMD Server CPU Market Share Reaches 46%
#

AMD reported that its data center CPU revenue share has reached approximately 46%, representing an all-time high for the company.

According to AMD’s cited Mercury Research data, EPYC unit share has increased from essentially zero to approximately 33% over six years, while revenue share has reached 46%.

Why CPU demand remains important in AI infrastructure
#

The rapid growth of GPU-based AI computing does not eliminate the need for powerful server CPUs.

As inference becomes a larger proportion of total AI workload, CPUs increasingly handle:

  • Request scheduling
  • Token dispatch
  • Memory management
  • Retrieval pipelines
  • Data preprocessing
  • Agent orchestration
  • Network and storage coordination
  • Accelerator workload management

AMD estimates that data center AI workloads shifted from approximately 40% inference in 2024 to 60% in 2026.

This transition increases the importance of CPU performance and efficiency because inference systems often require substantial orchestration around accelerator execution rather than simply maximizing GPU utilization.

🌐 AMD’s Broader AI Strategy
#

The Advancing AI 2026 announcements demonstrate that AMD’s strategy is becoming increasingly platform-oriented.

At the CPU level, Venice pushes Zen 6 into 2nm server silicon while expanding memory bandwidth and PCIe 6.0 connectivity.

At the accelerator level, MI455X combines CDNA 5, HBM4, 2nm compute chiplets, 3D cache integration, and advanced packaging to target large-scale AI training and inference.

At the infrastructure level, Helios integrates these components into a rack-scale system designed for hyperscale deployment.

At the edge, the Ryzen AI Embedded X100 family extends the same AI compute strategy into robotics and physical automation.

The longer-term roadmap then connects these product lines through 2030, pointing toward higher-bandwidth memory, optical interconnects, increasingly heterogeneous packaging, and more tightly integrated CPU-GPU-rack architectures.

The central message is clear: AMD is no longer positioning itself simply as an alternative CPU or GPU supplier. Its strategy is to provide an open, vertically integrated AI compute platform spanning silicon, software, systems, and physical infrastructure.

If the Venice, MI455X, and Helios roadmaps execute as planned, AMD’s competitive position in AI infrastructure could depend less on winning any single benchmark and more on how effectively it can scale this entire stack together.

Related

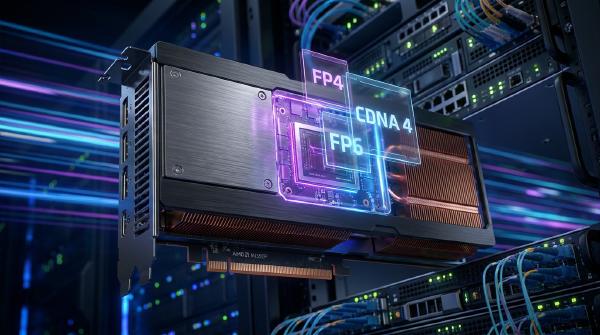

AMD Instinct MI350P: 141GB HBM PCIe AI Accelerator Gains Momentum
