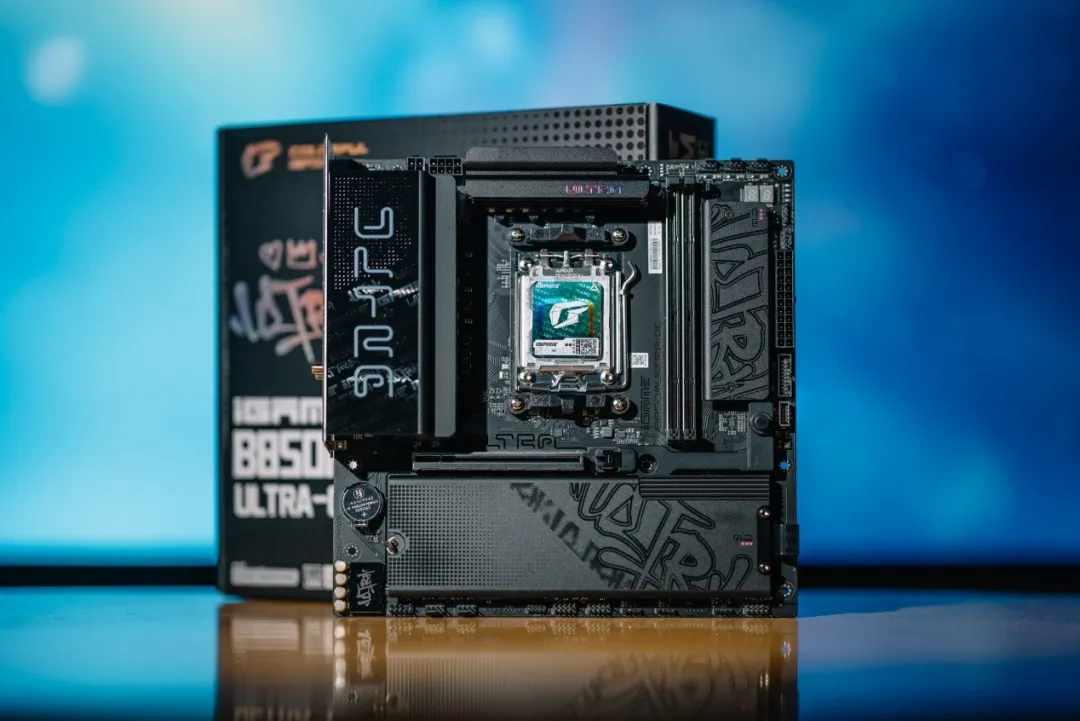

iGame B850M ULTRA-OC V14 Review: A Feature-Packed AM5 M-ATX Powerhouse
The AM5 motherboard market has become increasingly competitive, with vendors packing premium features into increasingly affordable products. Following the release of the Battle-Axe B850M-PLUS S WIFI7, Colorful has raised the bar again with the iGame B850M ULTRA-OC V14.
Positioned under the premium iGame Ultra lineup, this motherboard brings a surprisingly comprehensive feature set to the M-ATX segment. Priced at 1,299 RMB, it combines enthusiast-level overclocking capabilities, extensive storage expansion, high-speed networking, and thoughtful quality-of-life features typically reserved for more expensive platforms.
The question is simple: can this compact B850 motherboard deliver everything modern AM5 builders expect while maintaining excellent value? After extensive testing, the answer is largely yes.
🎨 Premium Design Meets Practical Expansion #
The iGame Ultra series has long embraced a distinctive street-inspired visual identity, and the B850M ULTRA-OC V14 continues that tradition with a darker and more refined approach.
Instead of relying on bright gradients, the board adopts a stealthy black aesthetic accented by subtle graffiti-inspired elements integrated into the heatsinks and PCB design. The result is a cleaner, more mature interpretation of the Ultra brand while maintaining strong visual identity.
Design Highlights #
The VRM heatsink features a multi-layer decorative nameplate that creates a dynamic holographic effect under different lighting angles. Combined with the textured armor surfaces, the board pairs exceptionally well with modern black-themed gaming systems.
For users building a compact high-performance gaming PC, the motherboard naturally complements graphics cards such as the iGame GeForce RTX 5070 Ti Ultra OC SFF 16GB.
Advanced Thermal Design #
Cooling is more than cosmetic on this motherboard.
The VRM cooling solution utilizes:
- Dual-layer heatsink construction
- Airflow-guided channel design
- Composite micro-groove surfaces
- Expanded heat dissipation area for M.2 and chipset cooling
These enhancements improve airflow efficiency and thermal transfer without increasing motherboard dimensions.
Storage and PCIe Expansion #
Despite its compact M-ATX footprint, the motherboard offers impressive storage capabilities:
- 1× PCIe 5.0 x16 graphics slot
- 4× M.2 SSD slots
- Toolless M.2 installation system
- Dedicated M.2 heatsinks
The PCIe slot also features reinforced metal shielding and a convenient quick-release mechanism that simplifies GPU removal, especially when using large triple-slot graphics cards.
Debugging and Connectivity #
One standout feature at this price point is the integrated Debug LED display.
The onboard diagnostic display provides real-time POST codes, significantly simplifying troubleshooting during system assembly and overclocking.
Rear I/O connectivity includes:
- 1× USB-C 3.2 Gen2 (10Gbps)
- 1× USB-A 3.2 Gen2 (10Gbps)
- 2× USB-A 3.2 Gen1 (5Gbps)
- 4× USB 2.0 ports
- HDMI 2.0
- DisplayPort 1.2
- 7.1-channel audio powered by Realtek ALC897
Networking is particularly impressive for this segment:
- Realtek RTL8126-VB-CG 5GbE controller
- MediaTek MTK7925 Wi-Fi 7 module
- Bluetooth 5.4 support
Additional conveniences include dedicated BIOS Flashback and Clear CMOS buttons directly on the rear I/O panel.
⚡ Robust Power Delivery for Ryzen X3D Processors #
Under the heatsinks, the motherboard employs a capable 10+2+1 phase VRM configuration utilizing 60A DrMOS power stages.
The layout consists of:
- 10 phases for CPU VCore
- 2 phases for SoC and I/O components
- 1 auxiliary power phase
This design provides stable power delivery even when paired with demanding processors such as the Ryzen 9 9950X3D.
High-Quality Components #
The power subsystem incorporates:
- 60A integrated DrMOS stages
- F.C.C. ferrite chokes
- Premium solid capacitors
- 8+4 pin CPU power input
The integrated DrMOS architecture reduces switching losses and improves transient response, helping maintain stable voltages during aggressive Precision Boost Overdrive (PBO) workloads.
Thermal Performance #
Testing with a Ryzen 7 9800X3D revealed excellent VRM thermals.
Even under sustained stress workloads, the highest external VRM temperature measured only 43.6°C, leaving substantial thermal headroom for higher-end processors.
🚀 X3D AI High-Frame Rate Mode #
One of the motherboard’s most interesting features is the X3D AI High-Frame Rate Mode.
Rather than applying generic overclocking profiles, this system analyzes processor characteristics and automatically configures:
- Precision Boost Overdrive parameters
- Curve Optimizer values
- Power limits
- Voltage offsets
- Frequency curves
- BCLK adjustments
The objective is to maximize gaming performance while preserving thermal efficiency and stability.
Available Profiles #
Within the BIOS, users can select:
- Auto
- Auto Select for specific X3D processors
- Turbo 1–4 preset levels
- BCLK-enhanced Turbo profiles
These options provide flexibility for both novice users and experienced overclockers.
Temperature Optimization #
During testing, enabling AI optimization reduced CPU temperatures by approximately 4°C under heavy workloads while simultaneously improving performance.
📊 Performance Testing Results #
Testing was conducted using a Ryzen 7 9800X3D platform.
CPU-Z #
With PBO enabled:
- Approximately 2% improvement in combined CPU performance
7-Zip Benchmark #
Memory-sensitive workloads benefited significantly:
- Around 6% performance increase
Cinebench 2026 #
Multi-threaded rendering performance showed the strongest gains:
- Up to 11% improvement
3DMark CPU Profile #
Gaming-oriented workloads improved by:
- Roughly 3%
AI Auto Select Profile #
Using the dedicated 9800X3D optimization profile delivered an additional performance increase, resulting in approximately 4% total gains over stock operation.
🧠 DDR5 Overclocking Capabilities #
Memory overclocking is clearly a priority for the iGame B850M ULTRA-OC V14.
Unlike many mainstream B850 boards, it adopts a dual-DIMM design rather than a four-slot layout.
Why Two DIMMs Matter #
The simplified memory topology offers several advantages:
- Shorter signal paths
- Reduced reflections
- Lower crosstalk
- Improved signal integrity
These benefits become increasingly important at higher DDR5 frequencies.
Memory Support #
The motherboard officially supports:
- DDR5-8400 EXPO/XMP profiles
- Overclocking beyond DDR5-8800
While capacity is limited to 128GB, that remains more than sufficient for gaming, content creation, and workstation workloads.
BIOS Memory Optimization #
The BIOS includes several one-click memory tuning profiles:
- Tightest
- Tighter
- Balance
- Relax
These presets automatically adjust secondary and tertiary memory timings, simplifying optimization.
AIDA64 Results #
Using an iGame Shadow DDR5-8000 48GB kit, memory tuning produced approximately:
- 38% improvement in write bandwidth
Latency also improved significantly when optimized UCLK settings were applied.
🎮 Gaming Performance #
Combined with an iGame GeForce RTX 5070 Ti Ultra OC SFF 16GB, the platform delivered outstanding gaming performance.
Forza Horizon 6 #
At 4K resolution with maximum settings and ray tracing enabled:
- Over 200 FPS
007: Double or Nothing #
At maximum settings:
- Exceeded 320 FPS
These results demonstrate that the motherboard introduces no meaningful bottlenecks for modern high-end gaming systems.
🏁 Final Verdict #
The iGame B850M ULTRA-OC V14 successfully punches above its weight class.
It combines enthusiast-grade features—including four M.2 slots, Wi-Fi 7, 5GbE networking, PCIe 5.0 support, advanced memory overclocking, and AI-assisted Ryzen X3D optimization—within a compact M-ATX design.
More importantly, these features are not merely marketing checkboxes. The motherboard delivers excellent thermal performance, stable power delivery, mature BIOS tuning, and practical usability enhancements that directly benefit daily use.
Pros #
- Excellent 10+2+1 phase VRM design
- Four M.2 slots on an M-ATX board
- DDR5-8800+ overclocking potential
- Wi-Fi 7 and 5GbE networking
- GPU and M.2 quick-release mechanisms
- Debug LED display
- Effective X3D AI optimization features
Cons #
- Dual-DIMM layout limits future memory expansion
- Audio solution remains entry-level compared to flagship boards
For AM5 builders targeting a compact gaming system or high-performance workstation, the iGame B850M ULTRA-OC V14 delivers one of the most complete feature sets currently available in the B850M segment. Considering its effective promotional pricing, it stands out as one of the strongest value-oriented enthusiast motherboards on the AM5 platform.
