The next bottleneck in AI infrastructure may not be compute performance. It may be memory.

Large language models, vector databases, recommendation engines, and distributed AI inference systems increasingly require memory capacities that are difficult and expensive to provide through conventional CPU-attached DDR alone.

Adding more memory to a traditional server is constrained by the number of memory channels, DIMM slots, motherboard routing, and processor memory-controller capabilities. At the same time, many servers operate with underutilized DRAM while other systems are constrained by insufficient capacity.

Compute Express Link (CXL) addresses this problem by allowing processors to access additional memory through a cache-coherent interconnect based on PCIe.

Among its device categories, CXL Type 3 has become the primary architecture for memory expansion. It allows a server to access device-attached memory without treating that memory as a conventional PCIe storage or accelerator device.

The longer-term opportunity is memory disaggregation: separating memory resources from individual servers and allocating capacity according to workload demand.

This article examines the Type 3 architecture, CXL generations, memory form factors, connection topologies, ecosystem development, and the practical challenges of deploying CXL in AI data centers.

🧭 CXL Memory Market: Where Does the Industry Stand in 2026?

#

CXL has progressed from a standards initiative into a commercial hardware ecosystem.

Memory manufacturers, CPU vendors, controller developers, and server manufacturers are developing products that extend conventional memory capacity through CXL.

However, there is an important distinction between the capabilities defined by the CXL specification and what can actually be deployed using commercially available hardware.

Direct-attached memory expansion is considerably more mature than large-scale, multi-host memory fabrics.

Key Market Drivers

#

Several factors are accelerating interest in CXL Type 3.

AI Workloads Are Increasing Memory Demand

#

Large AI models require substantial memory for more than model weights.

The overall footprint can include:

• Model parameters.
• Key-value (KV) caches.
• Embedding tables.
• Retrieval indexes.
• Intermediate tensors.
• Runtime metadata.
• Application and operating-system memory.

Inference workloads can be particularly memory-intensive.

For example, an LLM serving multiple concurrent users may consume substantial memory for KV caches, depending on context length, batch size, model architecture, and cache precision.

Adding more GPUs does not automatically solve this problem. The system still needs sufficient memory capacity to store the data required by active workloads.

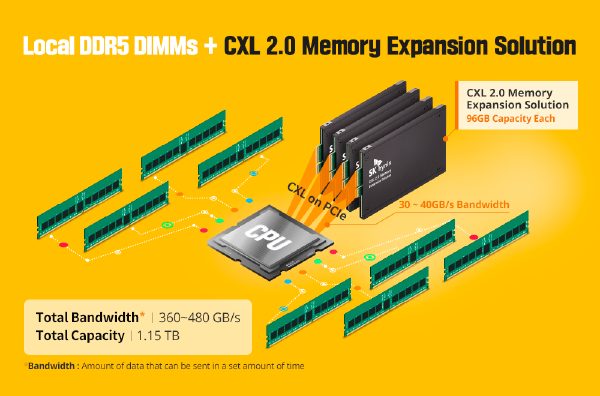

CXL provides another memory tier that can supplement local DDR.

Conventional DDR Expansion Has Physical Limits

#

A server CPU has a finite number of memory channels.

Adding more DIMMs increases available capacity, but it also introduces limitations involving:

• Memory-controller loading.
• Motherboard routing.
• Electrical signal integrity.
• DIMM population rules.
• Power consumption.
• Supported memory speeds.

Increasing memory capacity through CXL avoids adding more DDR channels directly to the processor.

Instead, the host accesses additional memory through the CXL interface.

The trade-off is additional access latency compared with local DDR, which means workload placement becomes important.

Memory Disaggregation Improves Capacity Utilization

#

Traditional server architectures allocate memory statically.

A server equipped with 1 TB of DRAM has that capacity reserved for its workloads, even when actual demand is substantially lower.

Across a large data center, this can produce significant stranded capacity.

CXL pooling provides a mechanism for allocating memory from shared resources to different hosts.

Instead of purchasing enough local memory for every server’s peak demand, operators can potentially allocate capacity from a common pool.

The benefit depends on workload compatibility, platform support, allocation granularity, and software orchestration.

Market Growth Estimates

#

Industry forecasts indicate strong growth in the CXL memory market, although estimates vary depending on whether they include memory modules, controllers, switches, pooling systems, and associated software.

For example, some 2026 market projections place the broader CXL memory market in the low-single-digit billions of US dollars.

These figures should be treated as market estimates rather than confirmed revenue from deployed Type 3 devices alone.

The distinction matters because the CXL ecosystem includes several different product categories, and their commercial adoption rates are not necessarily synchronized.

CXL 3.1 Is Not the Only Relevant Generation

#

The original market discussion focused heavily on CXL 3.1 as the next major adoption milestone.

However, the standard has continued evolving.

The CXL Consortium released CXL 4.0 on November 18, 2025.

Its key changes include:

• Increasing the data rate from 64 GT/s to 128 GT/s.
• Introducing bundled-port capabilities.
• Improving memory reliability, availability, and serviceability (RAS).
• Maintaining backward compatibility with previous CXL generations.

CXL 4.0 builds on PCIe 7.0, while CXL 3.x uses the PCIe 6.0 physical layer.

This does not mean CXL 4.0 hardware becomes immediately available across the server market. Commercial adoption still depends on CPU support, controller silicon, memory devices, switches, firmware, and operating-system integration.

For the official specification timeline, see the CXL Consortium specification releases.

🧩 Understanding CXL Type 3 Memory Expansion

#

CXL consists of three primary protocols:

• CXL.io
• CXL.cache
• CXL.mem

Different device types implement different combinations of these protocols.

CXL Type 3 is designed specifically for memory expansion.

What Is a CXL Type 3 Device?

#

A Type 3 device provides Host-Managed Device Memory (HDM) to a connected processor.

It supports:

• CXL.io for device discovery, configuration, and I/O operations.
• CXL.mem for host access to device-attached memory.

Unlike Type 1 and Type 2 devices, a standard Type 3 memory expander does not implement CXL.cache for caching host memory.

Its primary responsibility is providing additional memory capacity.

The device may contain volatile DRAM, persistent memory, or a supported combination of memory technologies.

From the host’s perspective, the attached capacity can be mapped into the system’s physical address space and exposed through the operating system’s memory-management infrastructure.

How CXL Type 3 Works

#

A simplified architecture looks like this:

          CPU / Memory Controller
                    |
                    |
                CXL Root Port
                    |
                    |
              PCIe / CXL Link
                    |
                    |
             CXL Type 3 Device
                    |
                    |
              CXL Controller
                    |
                    |
             Device-Attached DRAM

The CPU accesses the device memory through CXL.mem.

The protocol supports coherent memory access, allowing the operating system and applications to work with the attached memory without relying exclusively on explicit PCIe DMA transfers.

This is the fundamental difference between CXL memory and conventional PCIe-attached memory devices.

A conventional PCIe device typically exposes its own address space and requires software-managed data transfers.

A CXL Type 3 device can expose memory that the host accesses through memory load and store operations.

The underlying access path is still different from direct DDR access, however. CXL memory has its own latency, bandwidth, and NUMA characteristics.

The Three CXL Device Types

#

Understanding Type 3 becomes easier when compared with the other device categories.

Type 1 devices are commonly associated with coherent I/O devices such as certain SmartNIC architectures.

Type 2 devices are designed for accelerators that need both their own memory and coherent access to host memory.

Type 3 devices focus on expanding host memory capacity.

This relatively simple architecture explains why Type 3 has become the primary commercial CXL memory product category.

Direct-Attached CXL Memory

#

The simplest deployment connects one Type 3 memory device directly to a single host.

The architecture resembles a conventional PCIe add-in card, except that the device exposes memory through CXL.mem.

Its main advantages include:

• Straightforward hardware integration.
• Lower topology complexity.
• No external CXL switch requirement.
• Predictable host-to-device connectivity.
• Relatively simple resource management.

The main disadvantage is that capacity is tied to the individual host.

A directly attached memory device does not automatically become a shared memory pool accessible by several servers.

For broader context, see CXL Explained: Protocols, Device Types, Versions, and Memory.

🧱 CXL Memory Form Factor Evolution

#

As CXL deployment expands, the physical form factor becomes an important part of system design.

Memory devices must fit within server chassis constraints while providing sufficient cooling, electrical connectivity, and serviceability.

Three major form-factor categories are relevant.

1. PCIe Add-In Cards (AIC)

#

PCIe add-in cards are the most straightforward option for upgrading existing server platforms.

The device connects to a standard PCIe slot, provided that the processor, motherboard, firmware, and operating system support CXL.

Advantages include:

• Relatively simple installation.
• Compatibility with conventional expansion-slot layouts.
• Straightforward service and replacement.
• Easier integration into selected existing server platforms.

However, AIC designs consume expansion slots and may introduce airflow and thermal-density constraints.

They are useful for initial deployments and systems where chassis compatibility is more important than maximum memory density.

2. EDSFF: E3.S and E3.L

#

Enterprise and Data Center SSD Form Factor (EDSFF) designs are increasingly relevant to CXL memory products.

The two important form factors are:

• E3.S: A compact form factor suitable for high-density server configurations.
• E3.L: A longer form factor designed to support larger device configurations and additional capacity.

EDSFF provides several advantages:

• Front-accessible installation.
• Improved server serviceability.
• High-density device integration.
• Defined mechanical and electrical interfaces.
• Cooling designs suited to modern data center servers.

These characteristics make E3.S and E3.L attractive for CXL memory expansion.

However, EDSFF adoption is not limited to CXL. The same form-factor ecosystem is already used by enterprise storage devices.

Whether E3.S or E3.L is appropriate depends on the server chassis, thermal design, memory capacity, and supported electrical interface.

3. External Memory Boxes and CXL Expansion Enclosures

#

For larger deployments, memory resources can be installed in external expansion systems.

These enclosures typically combine:

• Multiple Type 3 memory devices.
• CXL controllers.
• CXL switching hardware.
• Power and cooling systems.
• Fabric management components.

The objective is to move memory capacity outside the individual server chassis while retaining a memory-oriented access model.

This provides a path toward composable infrastructure.

Instead of installing every memory module inside a host, operators can allocate capacity from an external resource pool.

The limitation is additional topology and management complexity.

External expansion requires compatible host ports, switches, device configurations, and software capable of managing memory resources correctly.

Form Factor Comparison

#

The industry has not converged on a single universal CXL memory form factor.

Different deployment models require different mechanical and electrical configurations.

🔗 CXL Connection and Memory Topology Trends

#

CXL memory can be deployed through several architectural models.

The distinction between direct attachment, pooling, and fabric-attached memory is particularly important.

These are not interchangeable terms.

Direct-Attached Memory Expansion

#

Direct attachment is the simplest configuration.

A Type 3 device is connected to a host through a CXL-capable PCIe link.

The host accesses the attached capacity as an additional memory region.

This model is appropriate when:

• A single server needs additional memory capacity.
• Low topology complexity is preferred.
• Memory sharing is unnecessary.
• The workload can tolerate the latency difference between local DDR and CXL memory.

Direct attachment is likely to remain an important deployment model because it requires fewer components than a full CXL fabric.

Switch-Based Memory Pooling

#

CXL 2.0 introduced switching and memory-pooling capabilities.

A CXL switch allows multiple hosts to connect to a shared collection of memory devices.

A simplified architecture looks like this:

          Host 1          Host 2
             |               |
             |               |
             +-------+-------+
                     |
                 CXL Switch
                     |
           +---------+---------+
           |         |         |
        Type 3     Type 3    Type 3
        Memory    Memory    Memory

The switch provides connectivity between host ports and downstream CXL devices.

Memory resources can be assigned to different hosts according to the supported resource-management model.

For example, a server running a memory-intensive database workload can receive additional capacity, while another server can operate with less.

This is useful for environments with variable workload demands.

However, CXL 2.0 memory pooling should not be confused with unrestricted simultaneous multi-host sharing.

A memory device or logical device may be reassigned between hosts, but the ownership and access model depends on device capabilities and platform configuration.

The CXL 2.0 architecture does not provide the general multi-host shared-memory coherency model introduced by later fabric generations.

Fabric-Attached Memory

#

CXL 3.0 and later generations extend the architecture toward more sophisticated fabric-based memory systems.

Global Fabric Attached Memory (G-FAM) allows memory resources to be addressed by multiple hosts or peer devices within a CXL fabric.

Depending on the configuration, memory ranges can be assigned exclusively or shared among multiple requesters.

Shared-memory coherence can be coordinated through supported hardware or software mechanisms.

This is a substantial architectural change.

Instead of treating memory as a resource physically owned by one server, the infrastructure can manage memory as part of a larger fabric.

A simplified topology looks like this:

             Host 1        Host 2
                |             |
                |             |
             CXL Switch / Fabric
                |
         +------+------+
         |      |      |
       Memory Memory Accelerator
        Pool   Pool      |
         |      |        |
         +------+--------+
                |
          Fabric Manager

This architecture can support more flexible resource allocation across servers and accelerators.

However, fabric connectivity does not automatically mean that every host can access every memory range with transparent cache coherence.

Address mapping, permissions, device configuration, and coherency management must all be implemented correctly.

Similarly, zero-copy access across multiple systems depends on the fabric and application architecture. It should not be assumed as a generic property of every CXL 3.x deployment.

Direct Attachment vs. Pooling vs. Fabric Memory

#

CXL 3.1 extends the fabric architecture with additional capabilities, while CXL 4.0 increases link bandwidth and introduces further connectivity and RAS improvements.

For a more detailed discussion of device networking, switching, and vendor positioning, see Understanding CXL Part 2: System Networking and Memory Ecosystem.

📊 Key CXL Industry Trends

#

Several changes are shaping the development of CXL infrastructure.

1. Memory Disaggregation Is Moving Beyond Research

#

Conventional servers allocate memory statically.

CXL provides mechanisms for separating memory capacity from individual processors.

This allows operators to consider memory as an independently managed infrastructure resource.

The practical benefits include:

• Lower stranded memory capacity.
• More flexible server provisioning.
• Better alignment between memory allocation and workload demand.
• Improved infrastructure utilization.
• Potential reductions in total system acquisition costs.

The biggest gains are expected in environments where memory demand varies significantly between workloads.

However, disaggregation does not eliminate the need for local DRAM.

Most practical architectures will continue to use a hierarchy of memory tiers with different performance and cost characteristics.

2. NUMA-Aware Memory Tiering

#

CXL memory generally has higher access latency than local DDR.

This means the operating system must understand where memory resides and how expensive it is to access.

Modern Linux systems expose CXL memory through NUMA and memory-management infrastructure.

Depending on the platform, memory can be represented as a separate NUMA node or tier.

A typical memory hierarchy may look like this:

The operating system and application runtime can use memory-tiering policies to place frequently accessed data closer to the CPU.

Less frequently accessed pages can be moved to CXL memory.

This improves effective memory utilization without requiring every workload to run entirely from the fastest available DRAM.

3. Software Support Becomes a Deployment Constraint

#

CXL hardware alone is not sufficient.

The operating system must enumerate devices, configure memory regions, establish address mappings, and manage memory allocation.

Linux provides a dedicated CXL subsystem for these functions.

Its components include:

• CXL root-port and switch discovery.
• Device configuration.
• HDM decoder management.
• Memory region creation.
• NUMA integration.
• Memory hotplug support.

The level of support depends on the kernel version, device type, firmware, and platform architecture.

Some advanced capabilities, particularly dynamic capacity management and multi-host sharing, have more limited software support than conventional direct-attached memory expansion.

This means production deployments need to validate the entire platform rather than relying solely on the advertised CXL specification version.

The Linux kernel CXL documentation provides a useful reference for current device and subsystem support.

4. Hardware Interoperability Is Improving, but Validation Remains Necessary

#

The CXL ecosystem now includes participation from major CPU, memory, and controller vendors.

Important participants include:

• Intel.
• AMD.
• Samsung.
• SK hynix.
• Micron.
• Astera Labs.
• Montage Technology.
• Marvell.
• Microchip.

These companies contribute different parts of the ecosystem, including host platforms, DRAM devices, CXL controllers, switches, retimers, and management software.

However, standards compliance does not guarantee that every hardware combination will work without integration effort.

Firmware revisions, decoder configuration, memory initialization, operating-system support, and switch management can all influence interoperability.

OEM qualification remains an important part of commercial CXL deployments.

🏭 CXL Memory Vendor Ecosystem

#

The development of CXL memory is not limited to CPU manufacturers.

Memory suppliers are building Type 3 devices, while semiconductor vendors provide the controllers and switching silicon required to connect them to host systems.

Samsung

#

Samsung has developed several CXL memory product concepts.

Its portfolio includes:

• CMM-D: CXL memory expansion.
• CMM-B: External memory pooling architecture.
• CMM-H: Hybrid memory architecture combining DRAM and NAND.
• CXL-PNM: Processing-Near-Memory research and product development.

Samsung’s strategy extends beyond increasing memory capacity.

It also explores using memory devices as part of larger data-processing architectures.

Near-memory processing can reduce data movement for selected operations, although it is a separate capability from the basic functionality of a Type 3 memory expander.

SK hynix

#

SK hynix has developed DDR5-based CXL memory expansion modules and continues to invest in larger-capacity memory architectures.

Its CXL work focuses on:

• Higher memory capacity per module.
• Improved bandwidth.
• More efficient memory expansion.
• Memory pooling.
• Integration with advanced server platforms.

SK hynix has also explored computational memory concepts through its broader AI memory portfolio.

Micron

#

Micron’s CXL memory portfolio includes products such as the CZ120 and related memory expansion solutions.

These products target servers that need additional memory capacity without requiring changes to the processor’s native DDR configuration.

The underlying architecture combines DRAM with CXL controller technology.

This illustrates how the CXL product ecosystem is assembled from multiple semiconductor components rather than relying on memory manufacturers to design every component independently.

Controller and Switch Vendors

#

CXL controllers and switches are equally important.

Astera Labs, Montage Technology, Microchip, and Marvell are among the companies developing components for CXL infrastructure.

Their products support different functions:

• Memory controller integration.
• Host-to-device connectivity.
• CXL switching.
• PCIe/CXL signal integrity.
• Multi-host resource allocation.
• Memory fabric expansion.

A CXL memory module’s performance depends on the entire path between the CPU and the DRAM.

The memory controller, link width, signaling rate, switch topology, and firmware configuration all contribute to the final result.

⚡ Performance Considerations: CXL Is Not a DDR Replacement

#

One of the most common misunderstandings about CXL is treating its memory as equivalent to conventional CPU-attached DDR.

CXL provides coherent memory access, but that does not mean it provides the same latency or bandwidth characteristics as local memory.

Latency

#

Local DDR memory connects directly to the processor’s integrated memory controller.

CXL memory introduces additional components into the access path:

• Host CXL interface.
• Physical link.
• Device controller.
• Memory interface.
• Potential switching stages.

Each stage affects latency.

Direct-attached CXL memory generally offers lower latency than more complex switched or fabric-based configurations, but it remains a distinct memory tier.

Bandwidth

#

CXL bandwidth depends on the physical link generation and width.

For reference:

A PCIe 6.0 x16 connection has a theoretical aggregate bandwidth of approximately 256 GB/s across both directions before protocol overhead, depending on the link’s transfer and accounting conventions.

Actual usable CXL.mem bandwidth depends on payload efficiency, transaction characteristics, device implementation, and the number of downstream devices sharing the available link capacity.

The physical signaling rate alone does not determine application-level performance.

Workload Placement Matters

#

A useful CXL deployment should distinguish between hot and cold data.

Frequently accessed data benefits from local DDR.

Less frequently accessed data can be placed in CXL memory when its additional access latency is acceptable.

Examples include:

• Large in-memory datasets.
• Inference KV caches.
• Search indexes.
• Database working sets.
• Embedding tables.
• Memory-intensive analytics.

The optimal placement policy depends on access frequency, locality, concurrency, and workload latency requirements.

Blindly moving memory to CXL can reduce performance even when it increases total available capacity.

🧠 Near-Memory Computing: Beyond Capacity Expansion

#

The CXL ecosystem is also exploring computational memory.

The basic idea is to move selected processing operations closer to where data resides.

Large datasets often require substantial CPU-to-memory data movement.

For some workloads, moving the computation to the memory device can be more efficient than repeatedly moving data across the interconnect.

Potential applications include:

• Vector operations.
• Search and filtering.
• Data reduction.
• Recommendation workloads.
• AI inference preprocessing.
• Database analytics.

However, near-memory computing should not be treated as an inherent feature of every Type 3 device.

A standard Type 3 memory expander primarily exposes memory through CXL.mem.

Additional processing capabilities require dedicated hardware and software support.

This distinction is important when evaluating products that combine memory expansion with computational features.

A memory device that supports local processing is architecturally different from a conventional passive memory expander, even if both belong to the broader CXL ecosystem.

🔮 Challenges That Could Slow CXL Adoption

#

CXL offers a compelling architectural direction, but several engineering challenges remain.

1. Software and OS Integration

#

Memory disaggregation requires operating systems to understand multiple memory tiers and manage placement efficiently.

Applications that assume all system memory has similar access characteristics may not benefit automatically.

Memory tiering policies must account for the difference between local DRAM and CXL-attached memory.

2. Multi-Host Coherency

#

Sharing memory between hosts introduces additional coherency and synchronization requirements.

The fabric must manage access permissions, memory ownership, and data consistency.

Software-managed sharing and hardware-managed coherent sharing have different implementation requirements.

The CXL generation and device architecture determine which mechanisms are available.

3. End-to-End Latency

#

Every additional switch and interconnect stage affects memory access latency.

A rack-scale memory architecture may provide substantially more capacity, but the system must ensure that the resulting access latency remains acceptable for the target workload.

This is particularly relevant for applications with high random-access intensity.

4. Power and Cooling

#

CXL memory devices consume power independently of the host processor.

External memory enclosures also require:

• Power delivery.
• Cooling infrastructure.
• Switching hardware.
• Management controllers.
• Additional cabling.

The total cost of ownership must account for the complete memory system rather than comparing memory capacity alone.

5. Platform Availability

#

A working CXL deployment requires coordinated support across:

• CPU.
• Motherboard.
• Firmware.
• CXL controller.
• Memory module.
• Switch, where applicable.
• Operating system.
• Management software.

A device supporting CXL 3.1 cannot automatically deliver every CXL 3.1 feature when connected to a CXL 2.0 host.

The negotiated capability is constrained by the complete system.

This is especially relevant when evaluating CXL 3.x and 4.0 products during the transition between specification generations.

🏗️ The Evolution Toward Composable Memory Infrastructure

#

The long-term value of CXL extends beyond adding memory to an individual server.

It provides a standardized path toward treating memory as an independently managed infrastructure resource.

The architectural evolution can be summarized in three stages:

The first stage addresses a straightforward capacity problem.

The second introduces resource pooling and switching.

The third expands the architecture toward shared fabric resources.

The fourth increases the bandwidth available to these systems and adds features intended to improve scalability and reliability.

For AI infrastructure, this creates an opportunity to separate compute capacity from memory capacity.

A server can use local DRAM for latency-sensitive data while accessing additional memory from a shared infrastructure pool when required.

The success of this architecture will depend less on the specification itself and more on the quality of the complete implementation: CPU support, memory-controller performance, fabric management, operating-system integration, and workload-aware memory placement.

CXL Type 3 is the starting point for that transition. Its importance lies not simply in adding more gigabytes to a server, but in changing how data center operators provision, allocate, and manage memory across their infrastructure.
