PCB Layout Design Guide: Signal Integrity, EMI, and Reliable Hardware
In hardware engineering, the schematic defines intent—but the PCB layout determines reality. Even a flawless circuit can fail if routing, grounding, and power integrity are poorly executed. Modern high-speed designs demand careful control of EMI, impedance, and return paths.
🧩 Component Selection: The Physical Foundation #
Before routing begins, component characteristics must align with electrical and thermal requirements.
| Component | Critical Checkpoints | Layout Impact |
|---|---|---|

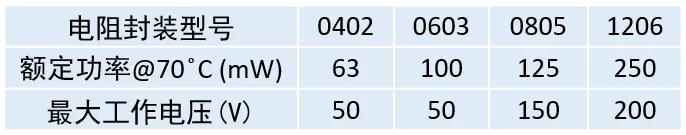

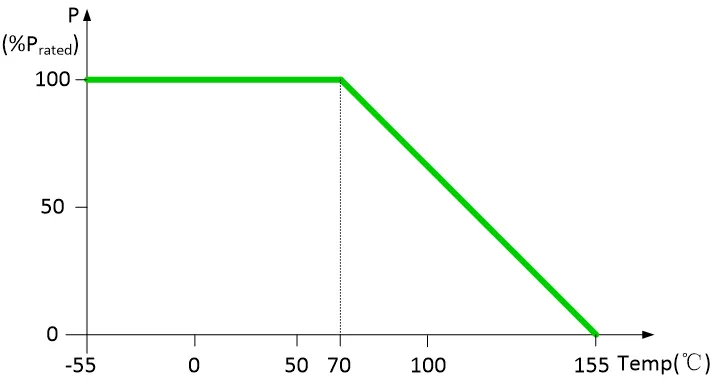

| Resistors | Voltage rating, power dissipation, temperature coefficient | Keep high-power resistors away from sensitive analog circuits |
| Capacitors | Voltage rating, ESR | Place decoupling capacitors close to IC power pins |
| Inductors | RMS current, saturation current ($I_{sat}$) | Use short, wide traces for high-current paths |
⚡ Defeating Signal Killers: Crosstalk & Reflection #
Crosstalk (Unwanted Coupling) #
Occurs when signals interfere through electromagnetic coupling.
- 3W Rule: Maintain spacing ≥ 3× trace width

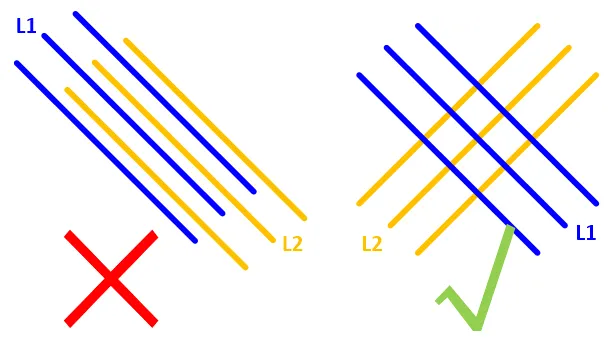

- Orthogonal Routing: Route adjacent layers at 90° angles
- Guard Traces: Insert grounded traces between sensitive signals

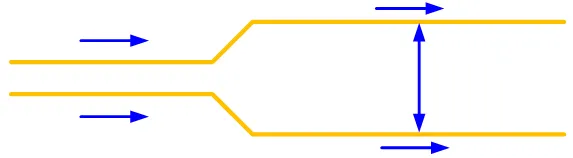

Reflection (Impedance Discontinuity) #
Caused by abrupt changes in geometry or routing.

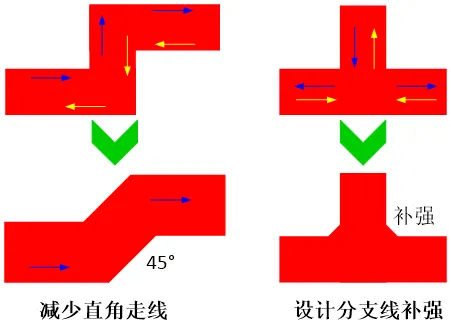

- 45° Routing: Avoid sharp 90° bends
- Stub Minimization: Eliminate T-branches in high-speed lines
- Controlled Impedance: Maintain consistent trace width and stack-up
🌐 Grounding Strategies: Return Path Matters #
Ground is not just a reference—it is the return path for current.

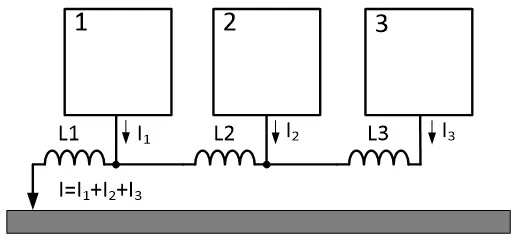

Single-Point Ground (Low Frequency) #
- Used for analog circuits (<1 MHz)
- Prevents ground loops

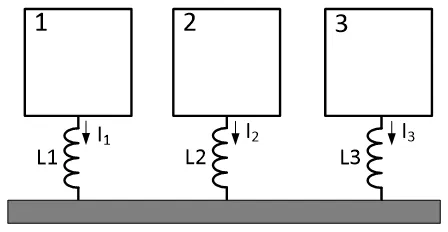

Multi-Point Ground (High Frequency) #
- Uses solid ground plane
- Provides low impedance return path
- Essential for digital systems (>10 MHz)
Best Practice: Use a continuous ground plane whenever possible.

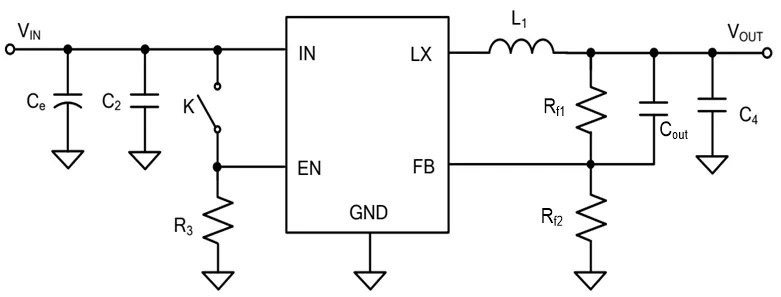

🔋 Power Integrity: Clean and Stable Rails #
Power delivery must handle fast switching without noise or voltage droop.

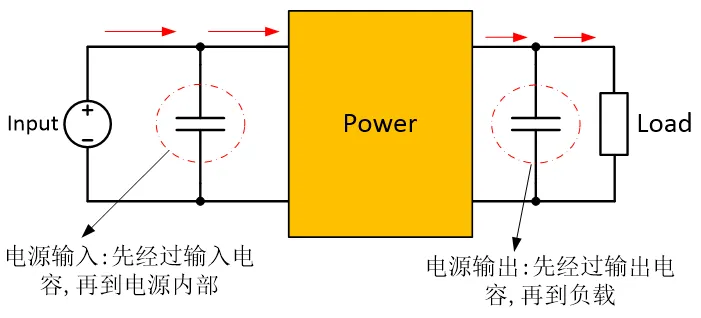

Decoupling Strategy #
-

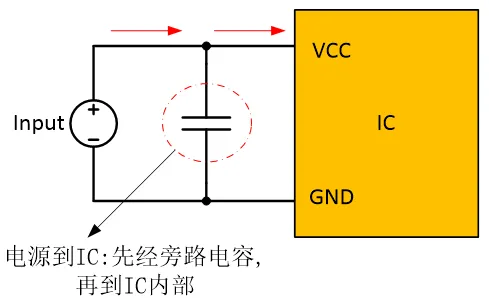

High-Frequency Caps (e.g., 0.1µF):
- Place closest to IC pins
- Filter switching noise
-
Bulk Caps (10µF–100µF):
- Place near power entry
- Stabilize low-frequency variations
🛠️ Expert Layout Tips #
1. Trace Width Hierarchy #
Prioritize routing as: Ground > Power > Signal
- Ground should be planes whenever possible
- Power traces should be wide and low impedance
2. Analog vs Digital Isolation #
- Separate noisy digital circuits from sensitive analog sections
- Use star grounding or controlled connection points

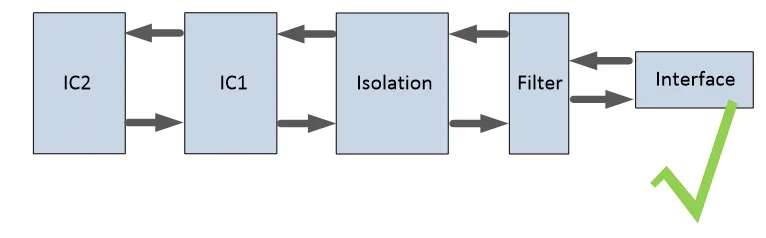

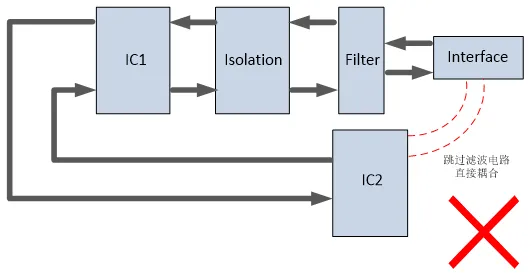

3. Maintain Signal Flow #
- Arrange components in logical signal direction
- Avoid unnecessary loops or backtracking

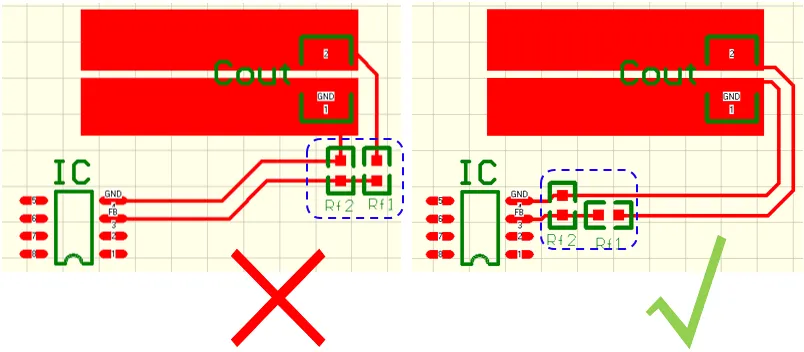

4. Protect High-Impedance Nodes #
- Keep traces short and isolated
- Avoid routing near switching nodes (e.g., DC/DC converters)
🚀 Summary #
PCB layout is where electrical theory meets physical constraints:
- Control return paths with solid ground planes
- Minimize crosstalk and reflections through spacing and routing
- Ensure power integrity with proper decoupling
- Keep layouts simple, direct, and impedance-aware
A well-designed PCB eliminates most hardware issues before fabrication, saving time, cost, and debugging effort.
